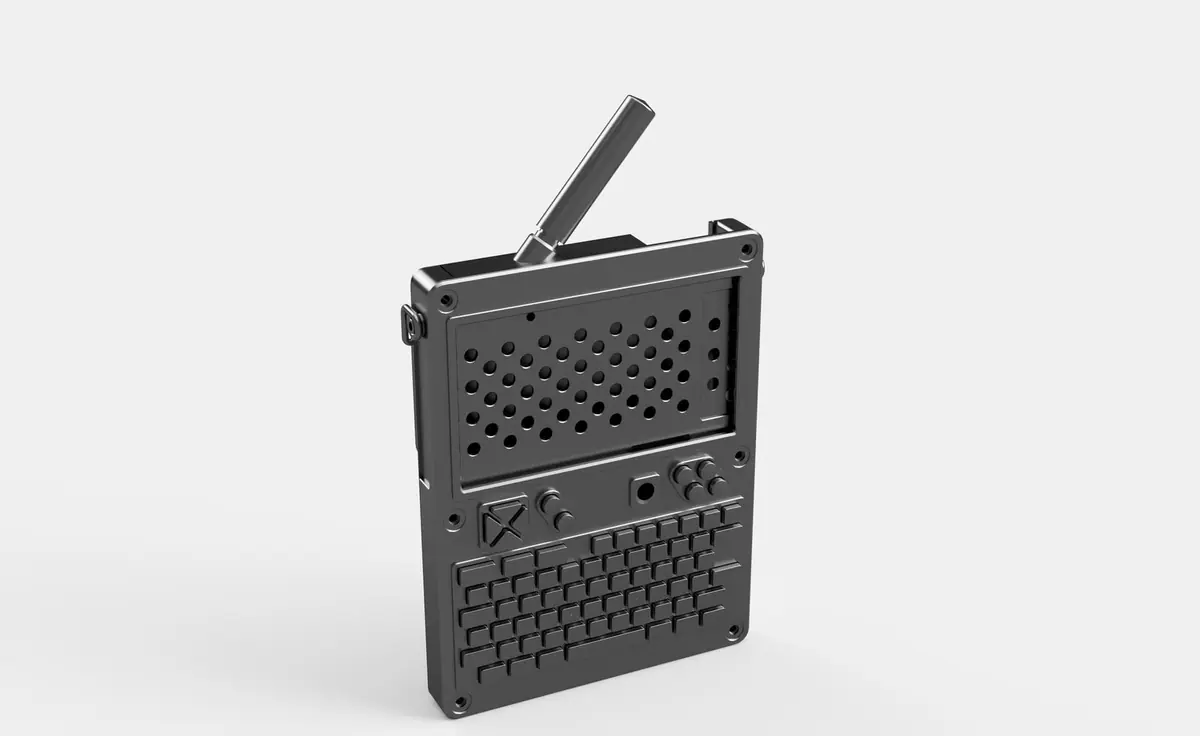

uConsole antenna bracket for three antennas (paragonnov)
A printed bracket that bolts to the console's flat-head M4 screw positions and carries three SMA antennas; a companion profile fits the HackerGadgets AIO board.
What it takes
- 3D print
- Disassembly
- Purchase required
Difficulty 2 of 3 — moderate.
Details
paragonnov's design comes as two pieces so the awkward shapes print cleanly, joined with superglue and fixed with two M4 bolts longer than 8 mm in the countersunk positions the uConsole already has. The MakerWorld page carries several profiles, including single-piece versions for printers that handle supports, and kalabaddon confirms generic pigtail antennas with hex flats drop straight in.
A companion profile is shaped for vileer's AIO extension board, with angled mounts for GPS, Wi-Fi/Bluetooth and LoRa. David's one-piece remix does away with the glue.
