Foldable Wi-Fi antenna adapter (julioz07)

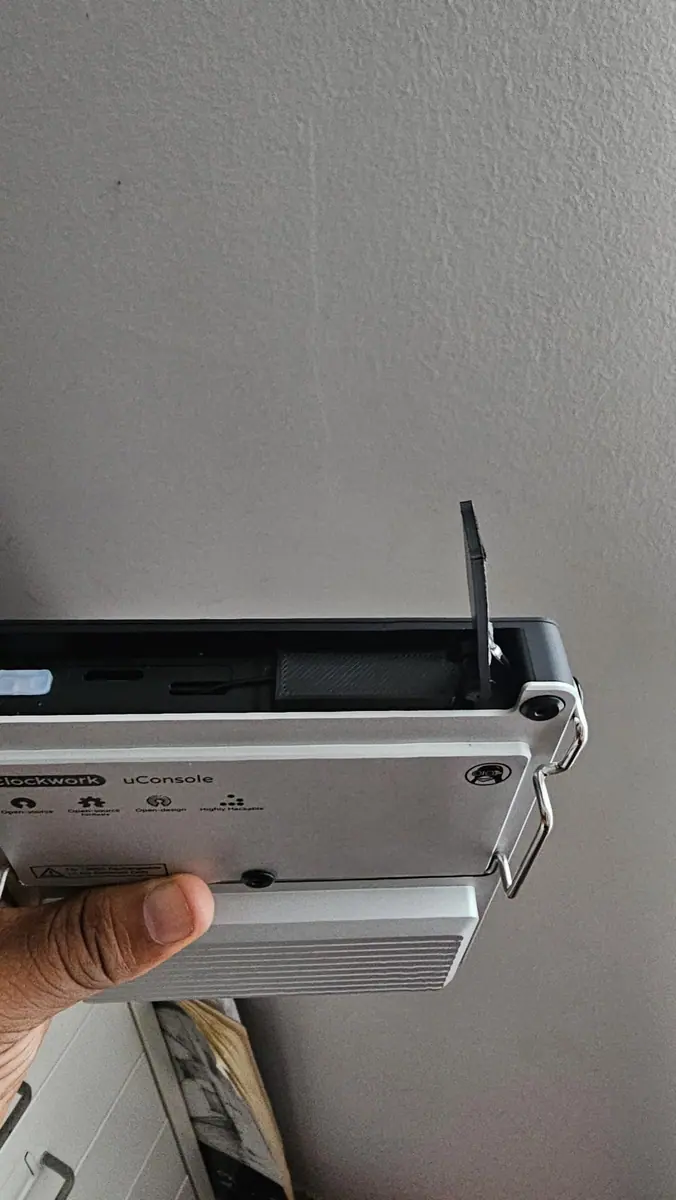

A tape-on printed hinge that holds the antenna flat for carrying and folds it up, clear of the metal body, when you need the signal.
What it takes
- 3D print
- Disassembly
Difficulty 2 of 3 — moderate.
Details
Júlio Rodrigues designed the adapter after finding the stock antenna loses most of its reach when it sits against the chassis: the printed part sticks on with double-sided tape, needs no modification to the console, and gives the antenna two positions — folded down and discreet, or upright and clear of the aluminium. It was posted in September 2025 with a request for test reports and a note that the design may still be adjusted; no measurements yet.
Links
