HackerGadgets antenna mounting kit and antenna pack
The SMA mounting board that bolts to the console and carries up to seven antennas, and the matching pack of SDR, LoRa, GPS, Wi-Fi and Bluetooth antennas.
What it takes
- Purchase required
- Disassembly
Difficulty 2 of 3 — moderate.
Details

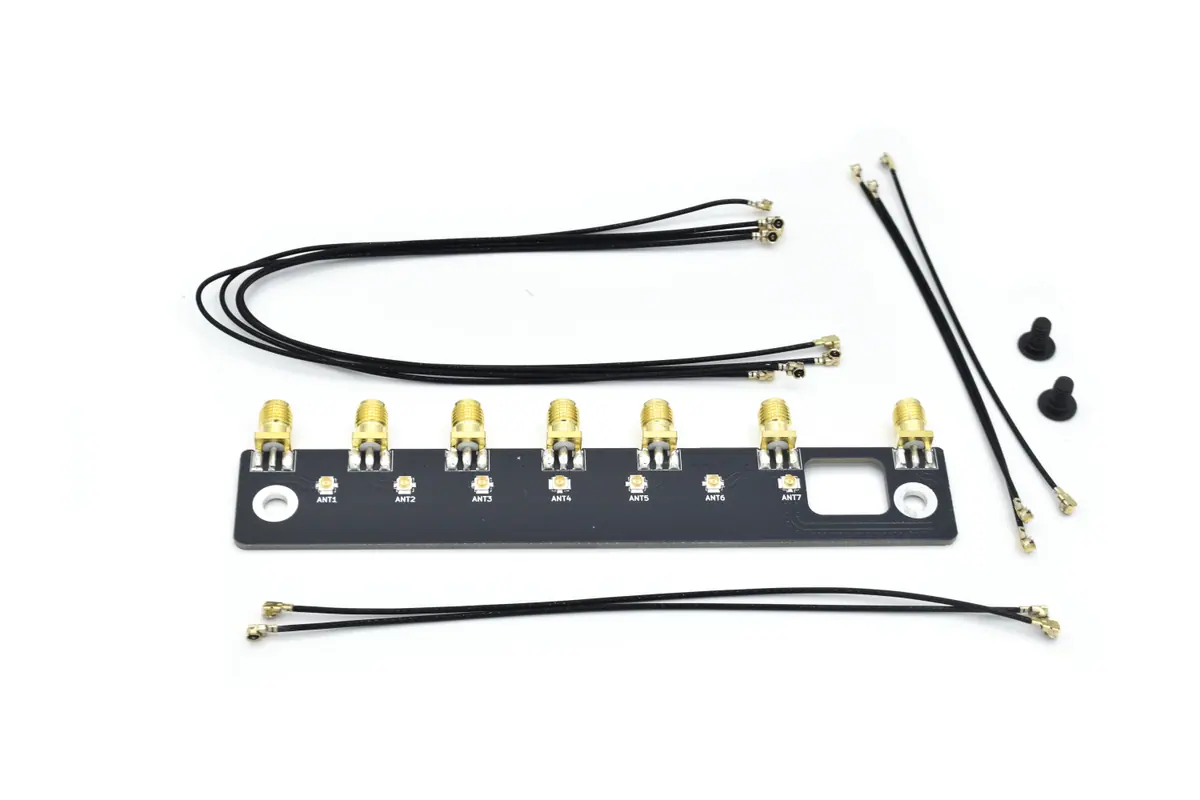

The mounting kit ($12.99) is the quick-mount SMA board sold in 7-antenna and 4-antenna forms; the 7-way version comes with longer pigtails, which matters if you also fit the AC1200 card. The antenna pack ($39.99) holds seven antennas: an ANT500 for the RTL-SDR (500 kHz–1 GHz), an 860–950 MHz LoRa whip, three 2.4/5 GHz Wi-Fi whips, two 2.4 GHz Bluetooth whips and a YIXI-G7 GNSS antenna (GPS L1/L2/L5, GLONASS, BeiDou) — the AIO v2 on its own only needs the SDR, LoRa, one Wi-Fi and the GPS antenna.
Both are also sold bundled with the AIO v2. Printed covers for the 7-antenna board exist from spaceharrier and darkgrue, and paragonnov's bracket is the printed alternative to the kit.
