Improved AIO side panel with a sturdier SMA port (hotellonely)
A thicker printed side panel for the HackerGadgets AIO board whose SMA mount does not strip, with the connector angled to suit the SDR antenna.
What it takes
- 3D print
- Disassembly
Difficulty 2 of 3 — moderate.
Details

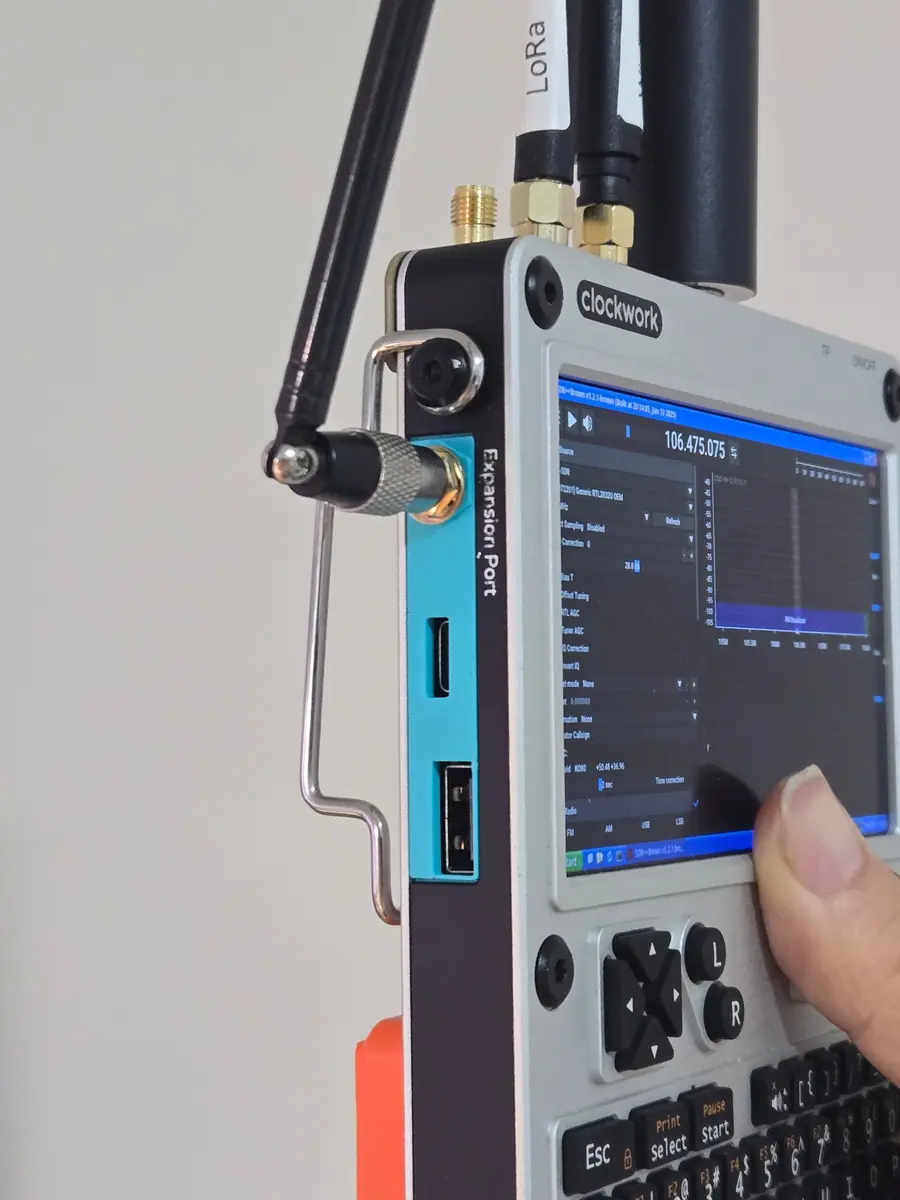

Freeman Jin (hotellonely) found the stock AIO side panel too thin and soft around the SMA connector, so it stripped; his PLA replacement is thicker, holds the SMA firmly and angles it for a better fit with the SDR antenna. v1 and v2 are shared as Google Drive downloads in the thread because MakerWorld would not accept files from a beta Bambu Studio. Shane Rounce asked for a slot for a Pi camera ribbon, which has not been added.
Links
Open at Forum threadRelated mods

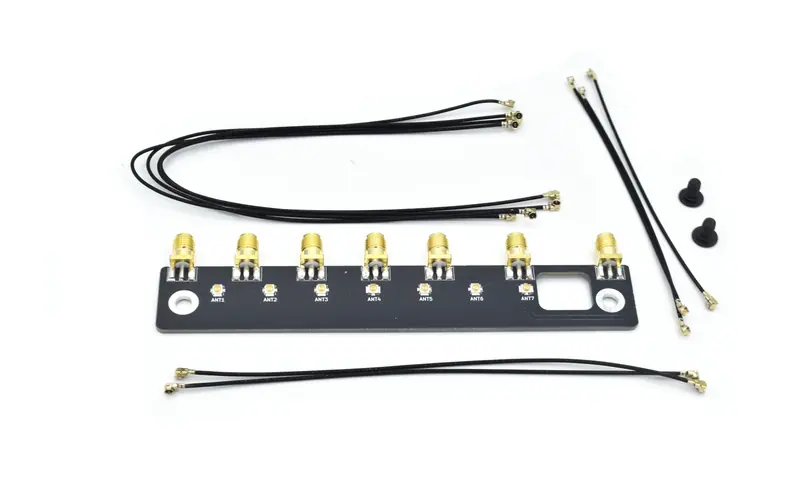

The SMA mounting board that bolts to the console and carries up to seven antennas, and the matching pack of SDR, LoRa, GPS, Wi-Fi and Bluetooth antennas.
