m3x's antenna mounts: micro 0.2, mini and full-size
The most-printed external antenna mounts for the uConsole — a small bracket on the console's own M4 screw positions with an RP-SMA bulkhead for a short whip.
What it takes
- 3D print
- Disassembly
- Purchase required
Difficulty 2 of 3 — moderate.
Details

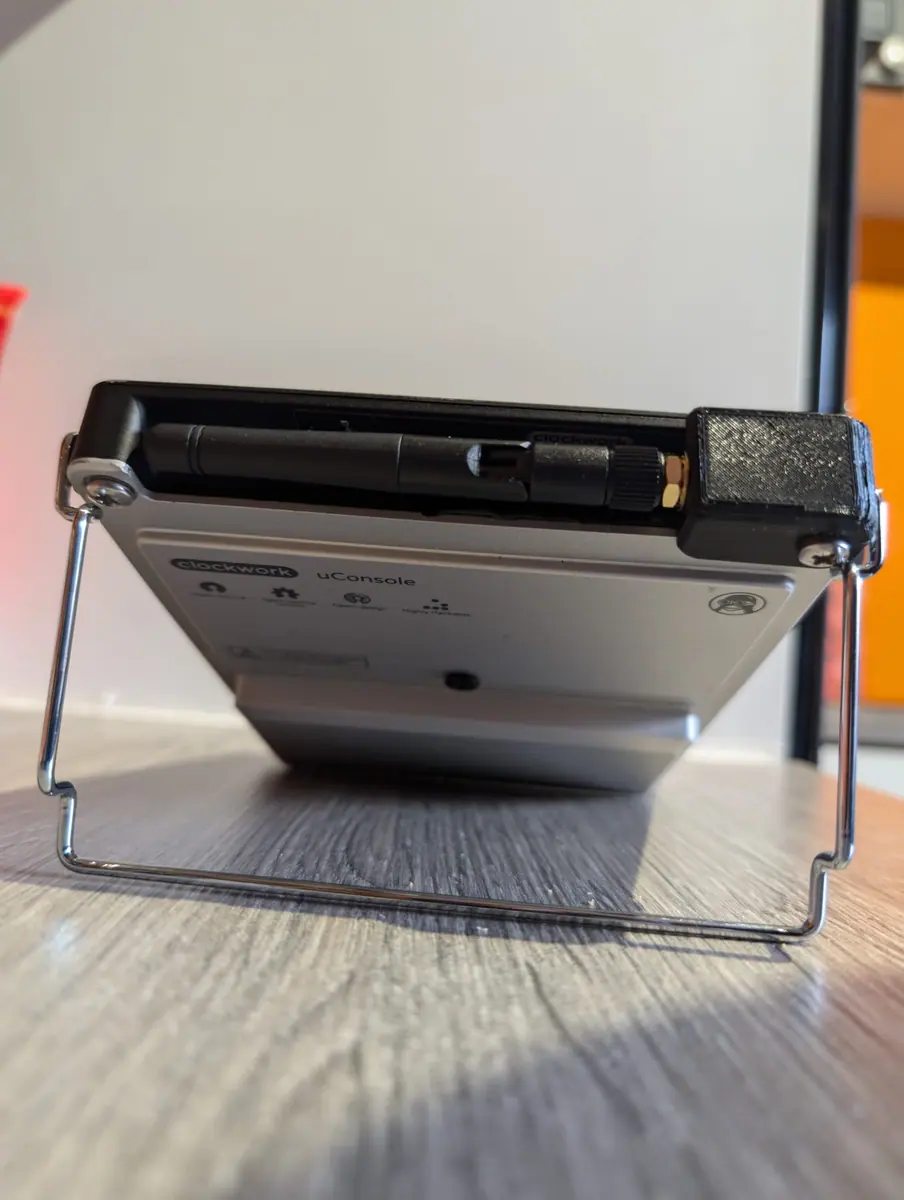

mex (m3x on Printables) published three variants in January 2024: a full-size antenna mount, a mini, and the micro 0.2, made in response to another owner's sketch; the micro became the default recommendation in the antenna thread. Each reuses two of the console's M4 countersunk screw positions — 8 mm screws reach the threads where the stock ones do not — and holds a u.FL-to-RP-SMA bulkhead pigtail.
modoxvx found an 8 cm Linx ANT-DB1-LCD-SMA dual-band whip fits the micro mount 'like a glove' (10 cm does not) using Waveshare's CM4 SMA cable kit, with a signal-strength graph in the thread. usaphoto3 had the bracket printed in AlSi10Mg; X-Stranger notes a PLA print flexes a little. Ememell and deruku published remixes with their own tweaks.
