Force the CM5's Wi-Fi onto 5 GHz with nmcli
A CM5 that quietly joins the crowded 2.4 GHz band inside a metal case gets a steadier link once NetworkManager is told to use 5 GHz only.
What it takes
- Config change
Difficulty 1 of 3 — easy.
Details
blackperl337 found his CM5 associating at 2427 MHz with poor throughput. nmcli connection modify "<name>" 802-11-wireless.band a followed by nmcli connection up "<name>" moved it to 5180 MHz, and together with an external SMA antenna on a printed mount the link became noticeably better and more stable. snipeytje's reply argues the antenna did most of the work; bored99 adds that Ubuntu 22.04 users should also set wifi.powersave = 2 in NetworkManager's config to keep the 5 GHz link from dropping.
Links
Open at Forum threadRelated mods
One line in config.txt switches a CM4 from its on-module PCB antenna to the u.FL connector the uConsole's antenna is actually plugged into.
Swap the stock foil antenna for a u.FL-to-RP-SMA pigtail, a small dual-band whip and a printed mount, with three years of measurements behind the choice.
The zero-cost fix: a scrap of plastic or foam tape between the foil antenna and the aluminium body, plus a re-routed lead, is worth 10–15 points of signal.
A screw-mount SMA bulkhead passed through the case's existing cable slit and nutted from inside — an external antenna with no drilling and no printing.

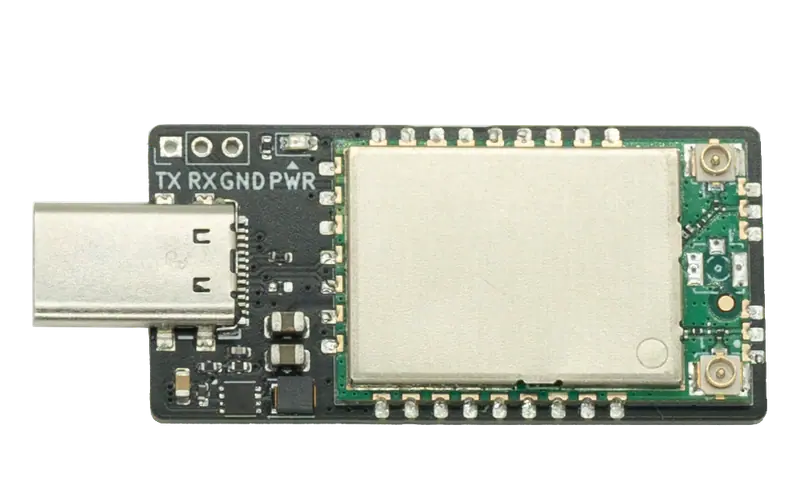

A MediaTek MT7921AUN Wi-Fi 6E and Bluetooth 5.2 card with monitor mode that plugs into the AIO board's internal USB-C and brings its antennas out on u.FL.
