Intercept — web dashboard for SDR, pagers, ADS-B and Wi-Fi/BT scanning
smittix's web front end wraps 433 MHz sensors, POCSAG/FLEX pagers, ADS-B, satellites and Wi-Fi/Bluetooth scanning in one page; Alejandro runs it on the AIO SDR.
What it takes
- Software only
- Purchase required
Difficulty 1 of 3 — easy.
Details

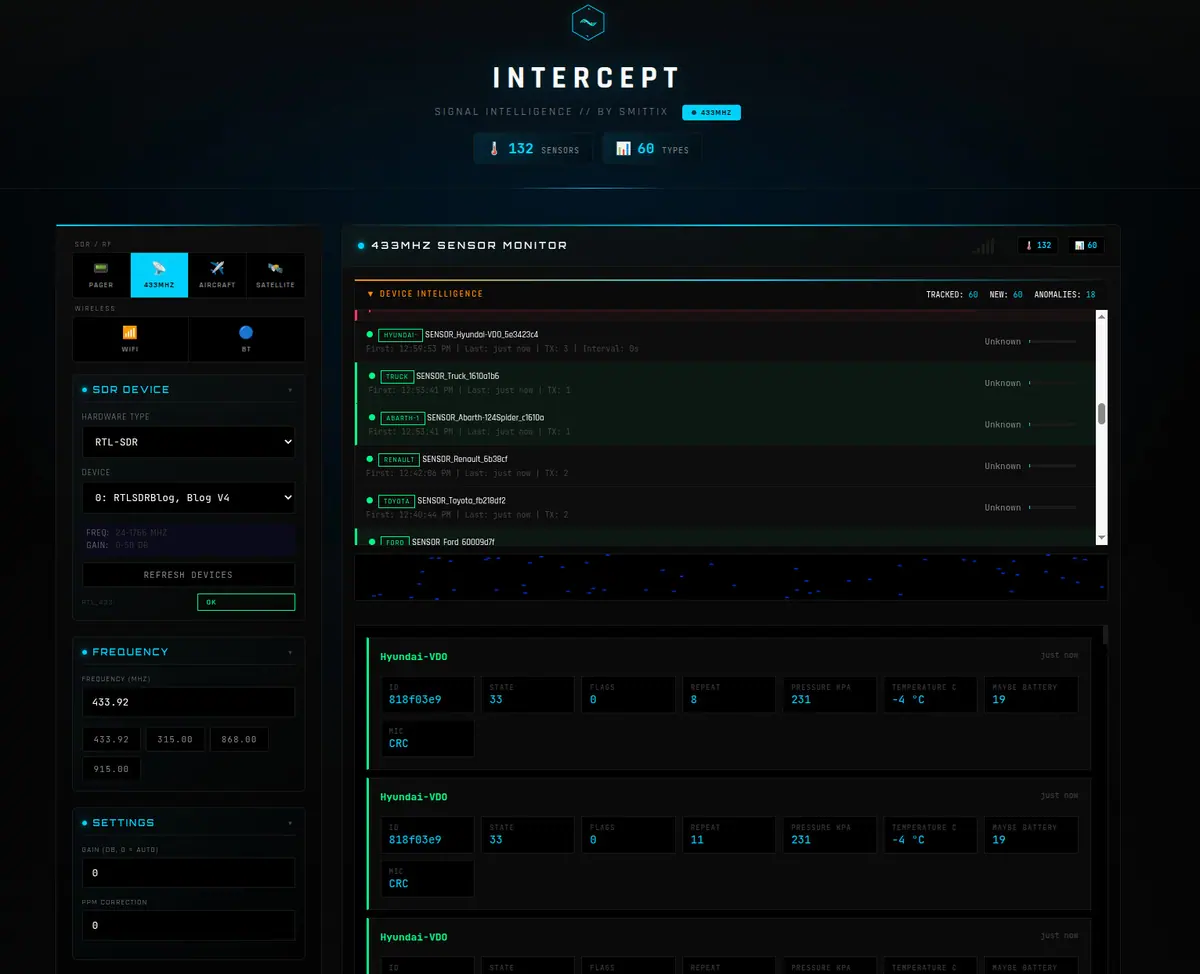

Intercept is a web UI over the usual command-line tools: 433 MHz sensor decoding, POCSAG/FLEX pagers, ADS-B, ACARS, AIS, NOAA and Meteor weather satellites, APRS, plus Wi-Fi and Bluetooth scanning with a monitor-mode adapter — all driven from a browser on the console. Alejandro installed it on Rex's image using the setup script's virtual-environment option and had it working against the HackerGadgets AIO SDR; Sh4d0wCr0w reports it on an A-06 too.
Caveats from the thread: Rex's Trixie image is missing several dependencies (sudo apt install python3-skyfield for satellite passes), dump1090 needs building by hand on Trixie, and the UI does not respond well to zooming on the 5-inch screen. The project itself is explicit that it is for authorised monitoring only.
Links
Open at Forum thread- GitHubRepository
