Ham radio digital modes (FT8 with JTDX / WSJT-X)

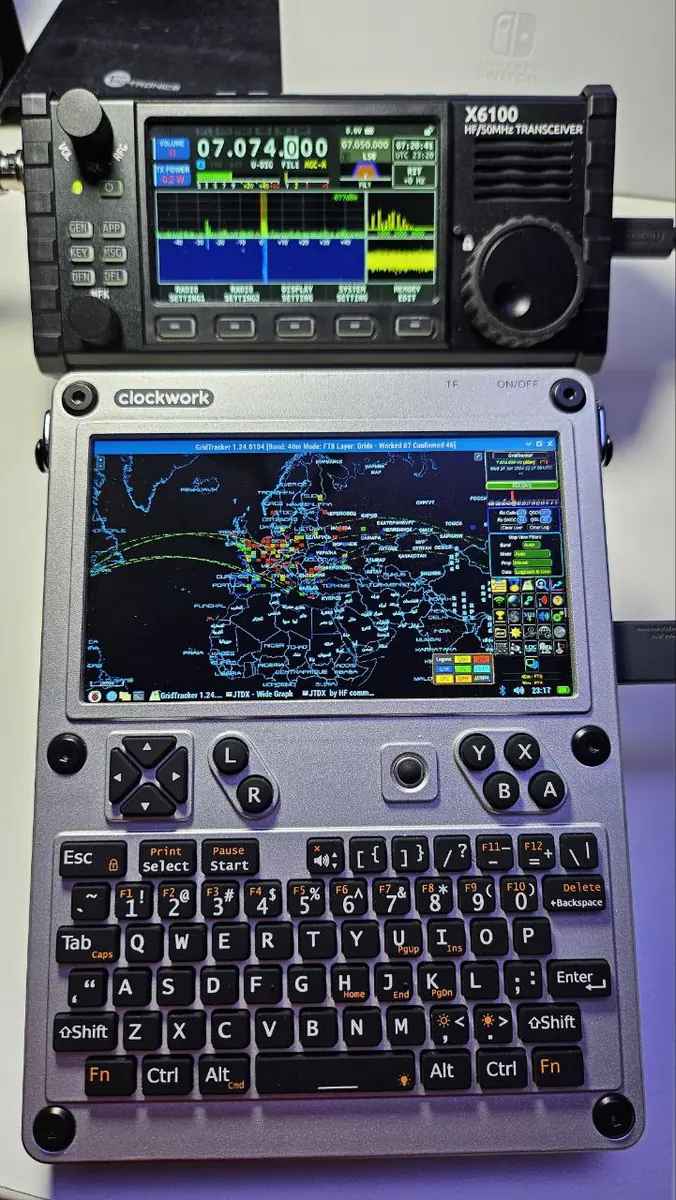

Toumal runs JTDX and GridTracker on a CM4 uConsole with a Xiegu X6100 — one USB cable carries CAT and audio; N4C3R took the same idea to Field Day with WSJT-X.
What it takes
- Software only
- Purchase required
Difficulty 1 of 3 — easy.
Details
Digital modes need nothing exotic: JTDX or WSJT-X plus GridTracker, and a transceiver that puts a sound card and CAT control on one USB cable — Toumal's X6100 works that way with no extra interface, though he warns a later Xiegu firmware broke CAT control and points at the R1CBU alternative firmware. Screen space is the limit at 1280 × 720; N4C3R ran the waterfall on the console and the main WSJT-X window on a portable HDMI monitor, with GridTracker on another machine over UDP. Several readers ordered a uConsole off the strength of this thread.
For radios without a built-in interface, yaghini's HAM HAT and SwiftyTheFox001's RigCon (Expansion entries) provide the audio and rig-control path inside the case; an RTL-SDR only receives.
