uConsole USB ext. board — four USB-C ports and internal storage
Radiation_Joe's Tindie card adds four USB-C ports; Kirou uses it to mount an internal SSD, tested on CM4 and CM5.
What it takes
- Plug & play
- Purchase required
Difficulty 1 of 3 — easy.
Details

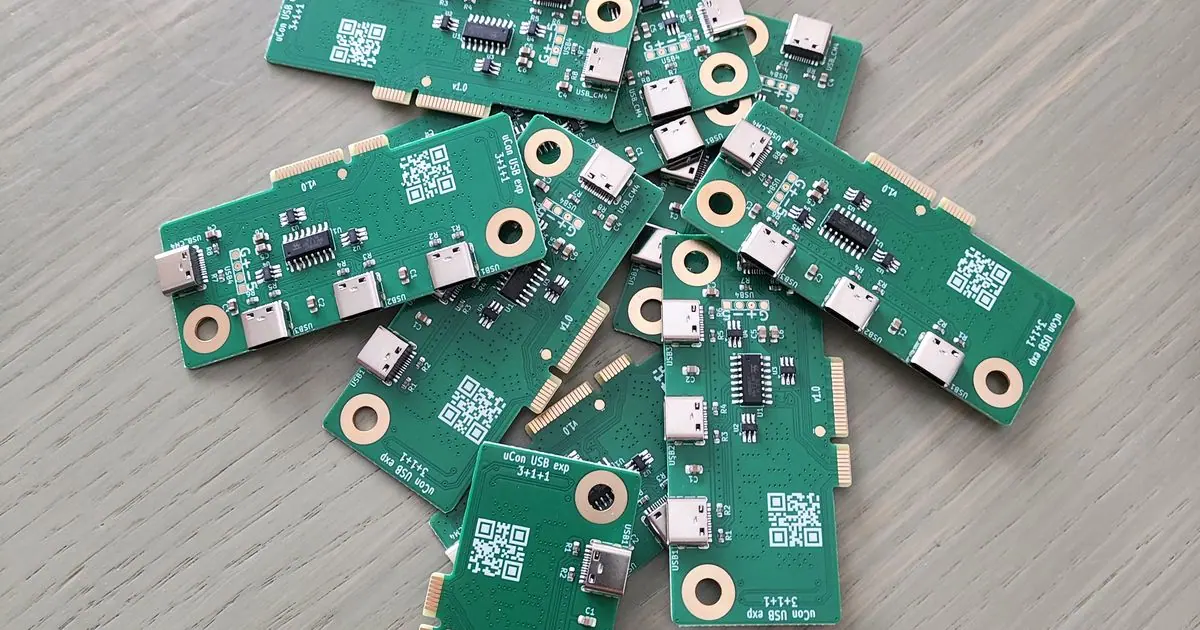

A $40 expansion card with four USB-C ports and an internal USB breakout. Kirou's thread documents fitting a USB SSD inside the console on it as a mass-storage upgrade that keeps the SD card free, and compares notes with lulu's NVMe route. Works on CM4 and CM5 (CM3 untested).
Links
Open at Tindie — uConsole USB ext. boardRelated mods
