HackerGadgets RTL-SDR extension board (v1)

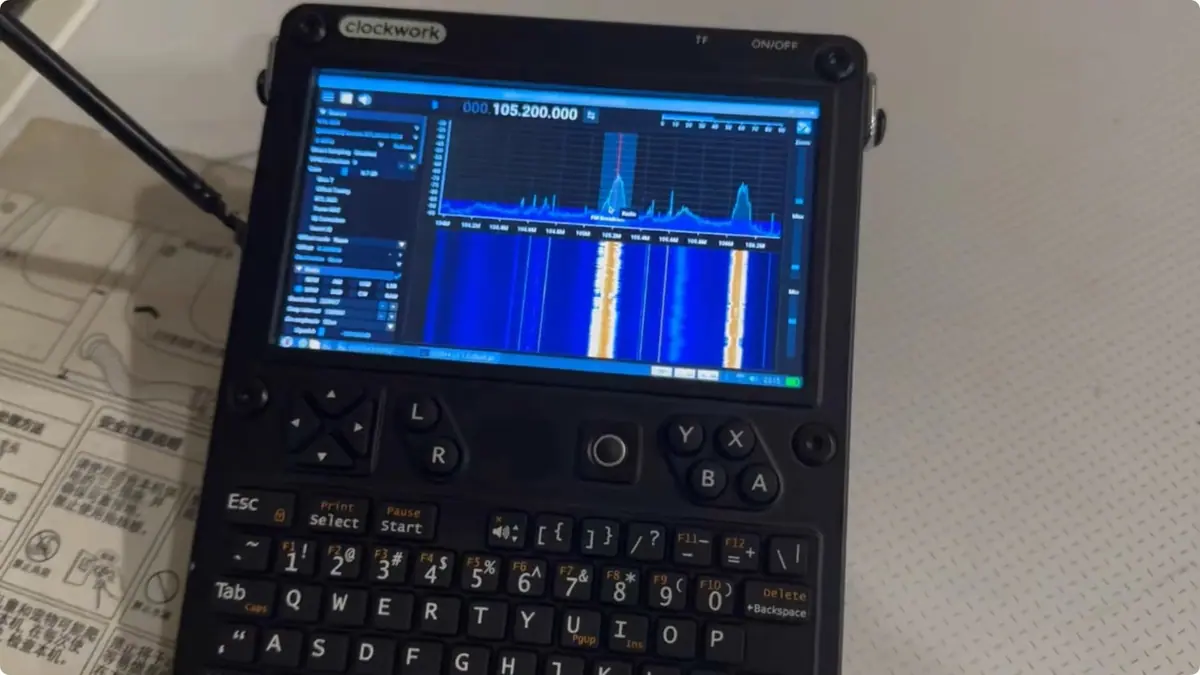

The 2024 original: an RTL-SDR (R820T2), USB hub and real-time clock on one expansion card — the board that started the AIO line.
What it takes
- Plug & play
- Purchase required
Difficulty 1 of 3 — easy.
Details
vileer reverse-engineered an RTL-SDR dongle onto an expansion card after a first attempt failed, added an RTC because the CM4 had none, and shipped a batch under the HackerGadgets name; LoRa and GPS followed on later revisions. It is superseded by the AIO v2 and no longer sold, but many consoles still carry one and its setup guide is still online.
