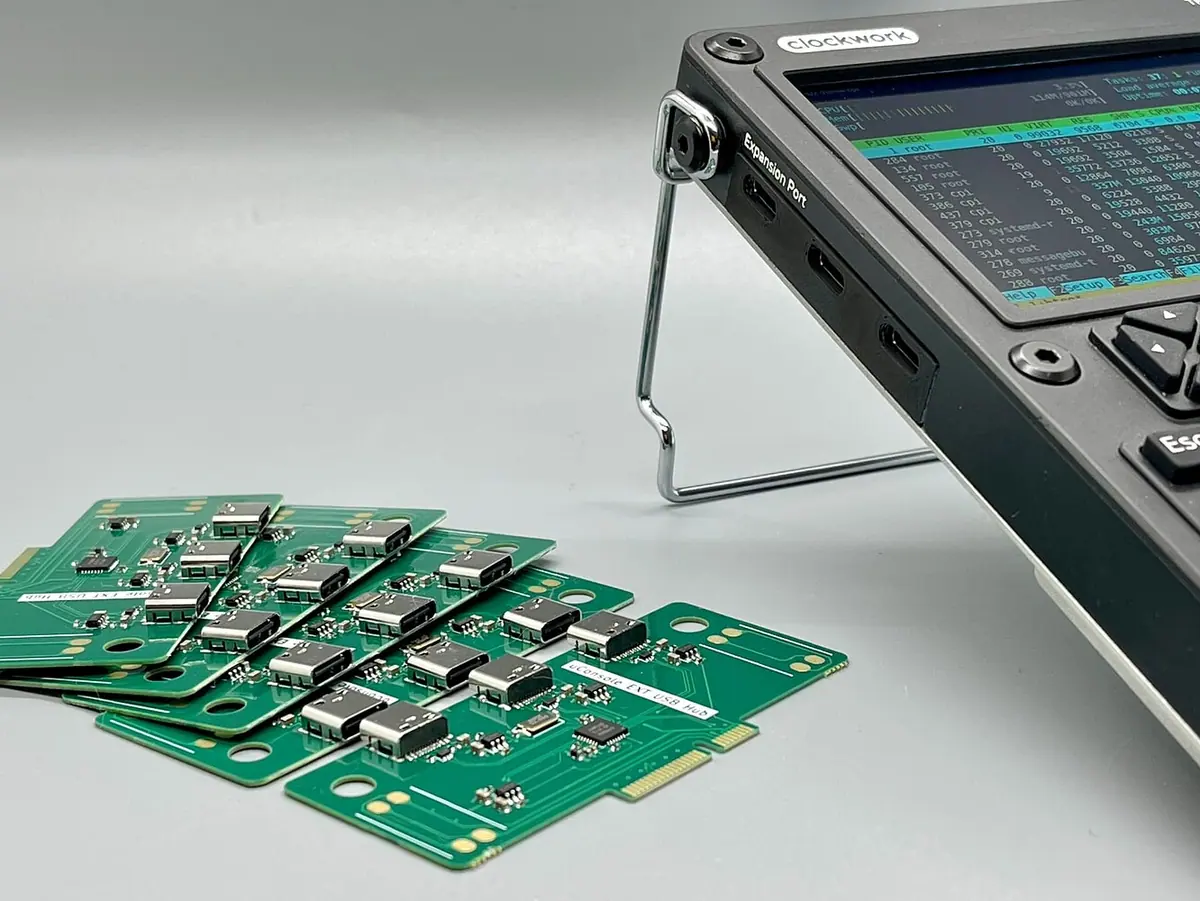

uHub — USB hub expansion card
Open-source card with three USB-C ports, an internal FFC USB header and speaker pads, from the maker of uPico.
What it takes
- Plug & play
- Purchase required
Difficulty 1 of 3 — easy.
Details
uHub turns the expansion slot into a USB 2.0 hub with three external USB-C ports plus an internal connector for devices mounted inside the case; it keeps the speaker connections the 4G board would otherwise provide. Files are on GitHub and boards sell on Tindie. The RF Toolbox build uses a modified uHub as the backbone for internal GPS, SDR and LoRa modules.
Links
Open at Forum thread- GitHubRepository
- Tindie — uHubShop
