Four-port USB hub extension board (argz)

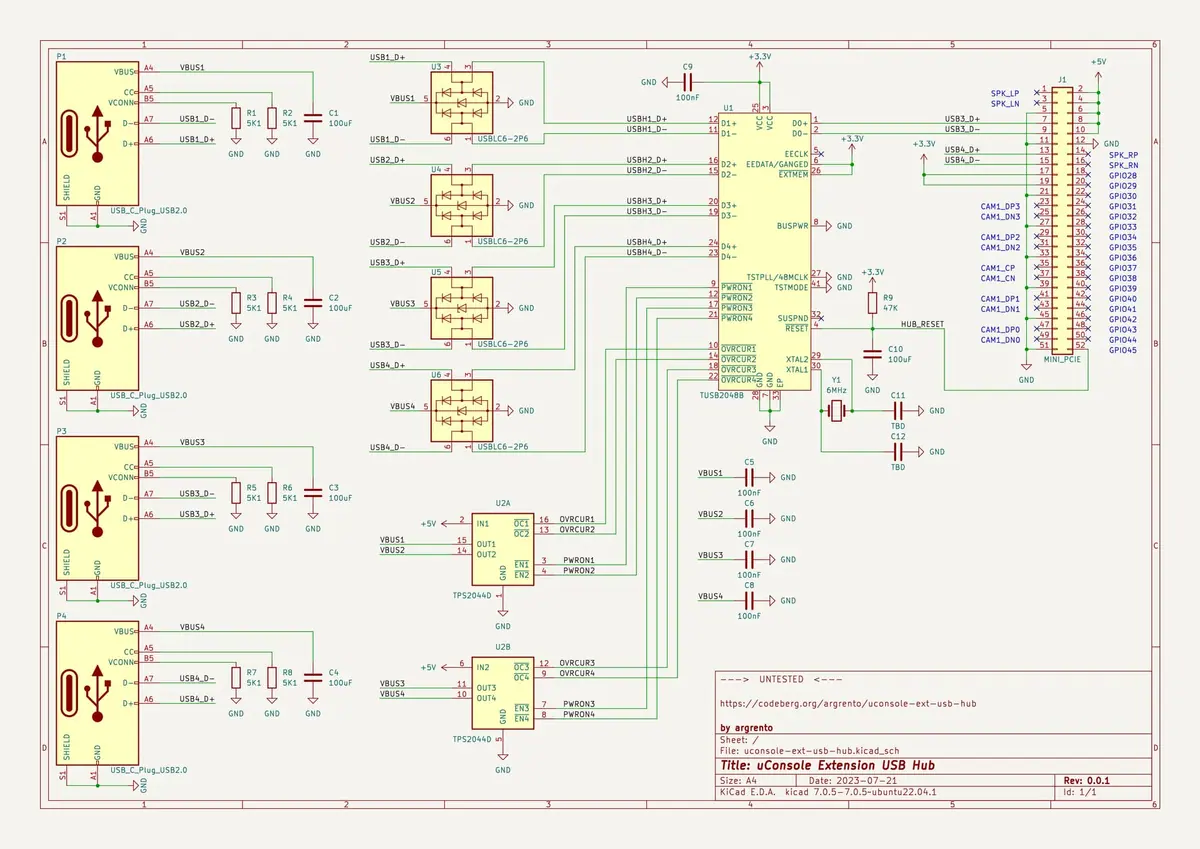

A community PCB that replaces the 4G modem with four extra USB ports — schematic and layout on Codeberg.
What it takes
- Plug & play
- Soldering
- Purchase required
Difficulty 3 of 3 — advanced.
Details
argz published the schematic and board for a USB 2.0 hub in the modem slot in July 2023, inviting pull requests; it is one of the earliest open expansion designs and predates the commercial hubs. You order the boards and assemble them yourself.
