uKVM — KVM expansion board

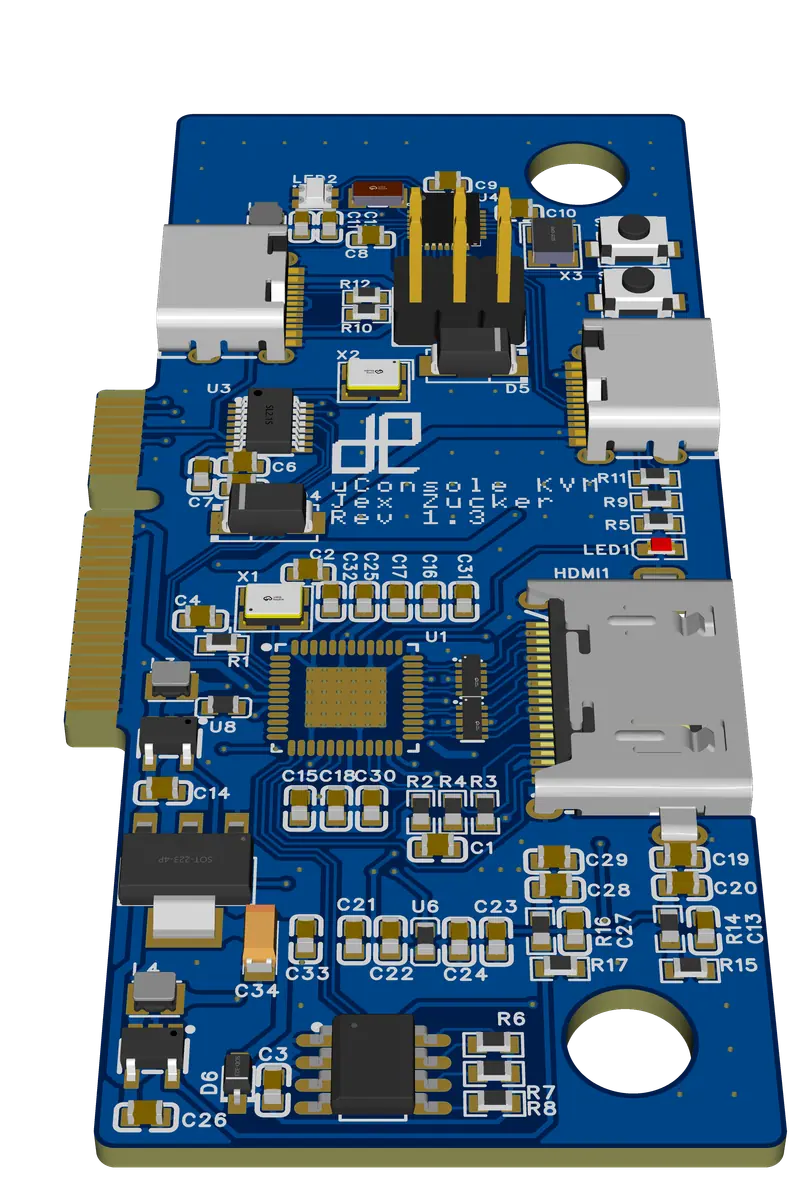

Zucker's open KVM card based on the yuzuki-hcc HDMI capture design; standard or micro-HDMI input, recessed to fit the case.
What it takes
- Plug & play
- Purchase required
- Soldering
Difficulty 3 of 3 — advanced.
Details
A community alternative to the Openterface card, referencing the yuzuki-hcc capture design. Each board takes either a full-size or a micro HDMI input (not both), and the full-size port had to be recessed to fit. Schematics and PCB files are published; the maker notes it can't be shipped outside mainland China, so most people would fabricate their own.
