uPico — RP2040 expansion card
Vitaly's open-hardware card puts an RP2040 microcontroller and a GPIO pinout in the expansion slot for sensors, hats and firmware projects.
What it takes
- Plug & play
- Purchase required
Difficulty 1 of 3 — easy.
Details

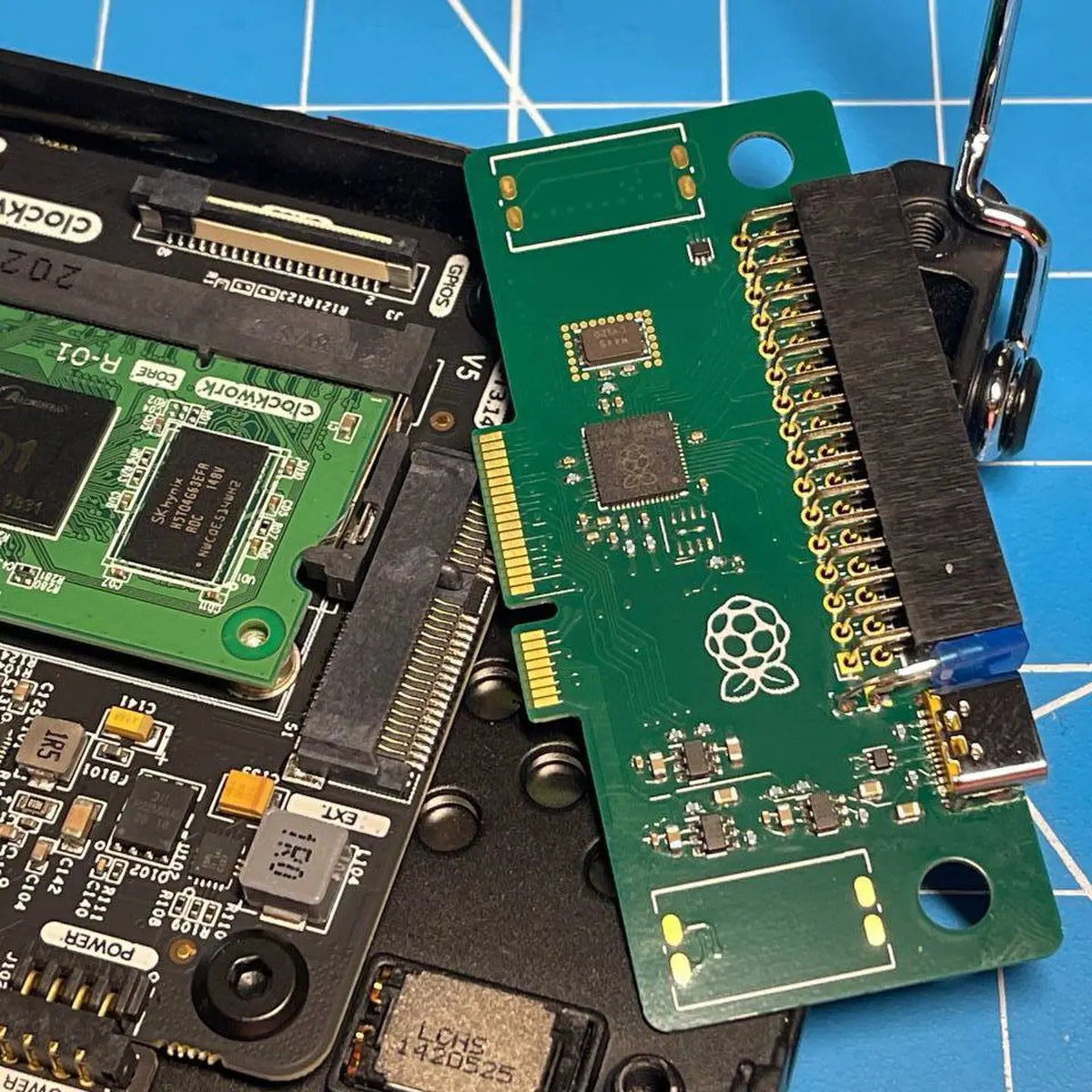

The most-liked expansion card on the forum: a Raspberry Pi Pico-class RP2040 on a card that fits the modem slot, exposing GPIO the CM4/CM5 don't route to the outside. Source, PCB design and firmware live on GitHub (CC-BY-SA), and finished boards are sold on Tindie under Quadbit. Other cards, including the oscilloscope concept, build on it.
