LoRa + GPS extension board (argz)

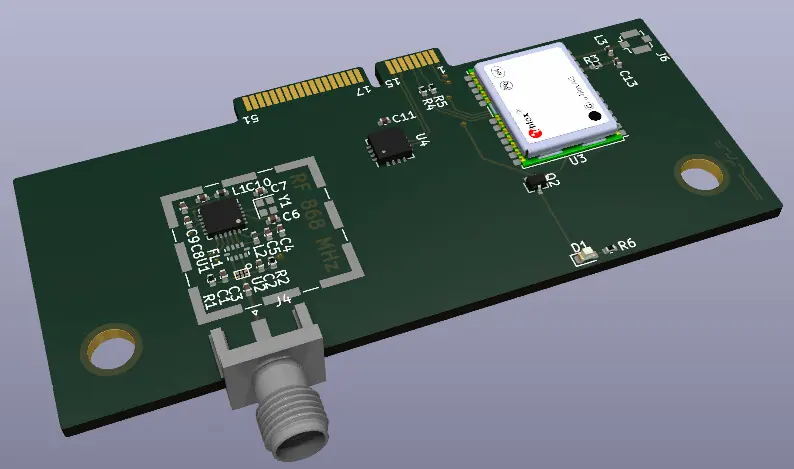

An open expansion card with a LoRa radio (RFM98-class module) and a GNSS receiver, designed for Meshtastic-style use.
What it takes
- Plug & play
- Soldering
- Purchase required
Difficulty 3 of 3 — advanced.
Details
Started in August 2023 as a follow-up to the Meshtastic-compatible-LoRa discussion, with the repository on Codeberg and RNode/Reticulum firmware in mind. It was a work in progress when posted; check the repo state before ordering boards.
Links
