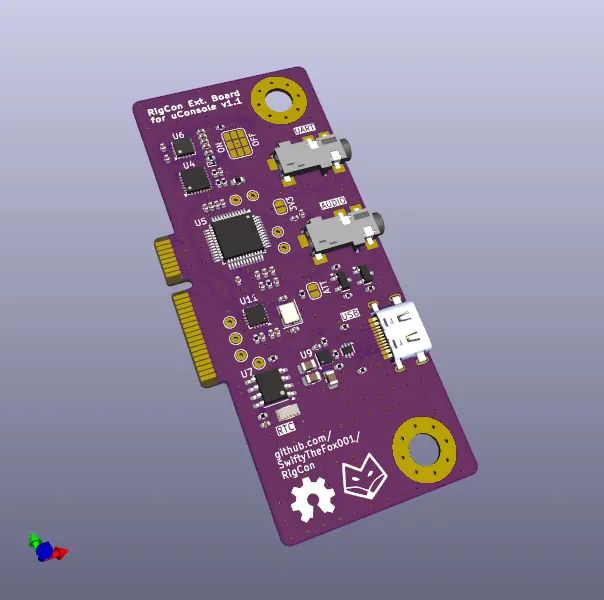

RigCon — DigiRig-style rig interface card
A DigiRig 1.9 clone on an expansion card: audio interface with PTT and a UART, both on 2.5 mm jacks, plus an RTC — for portable digital modes.
What it takes
- Plug & play
- Soldering
- Purchase required
Difficulty 3 of 3 — advanced.
Details
SwiftyTheFox001 built the uConsole for summits-on-the-air digital modes and wanted the external sound card, PTT and clock inside the case. RigCon reproduces the DigiRig audio interface and adds serial and RTC. Design files are on GitHub.
Links
Open at Forum thread- GitHubRepository
