RF Toolbox build — internal RTC, GPS, SDR and LoRa on a uHub
mwaldron's CM4 build: better Wi-Fi antenna, an I²C RTC on the expansion-port pads, GPS and an RTL-SDR on a modified uHub, LoRa and CC1101 in progress.
What it takes
- Disassembly
- Soldering
- Purchase required
Difficulty 3 of 3 — advanced.
Details

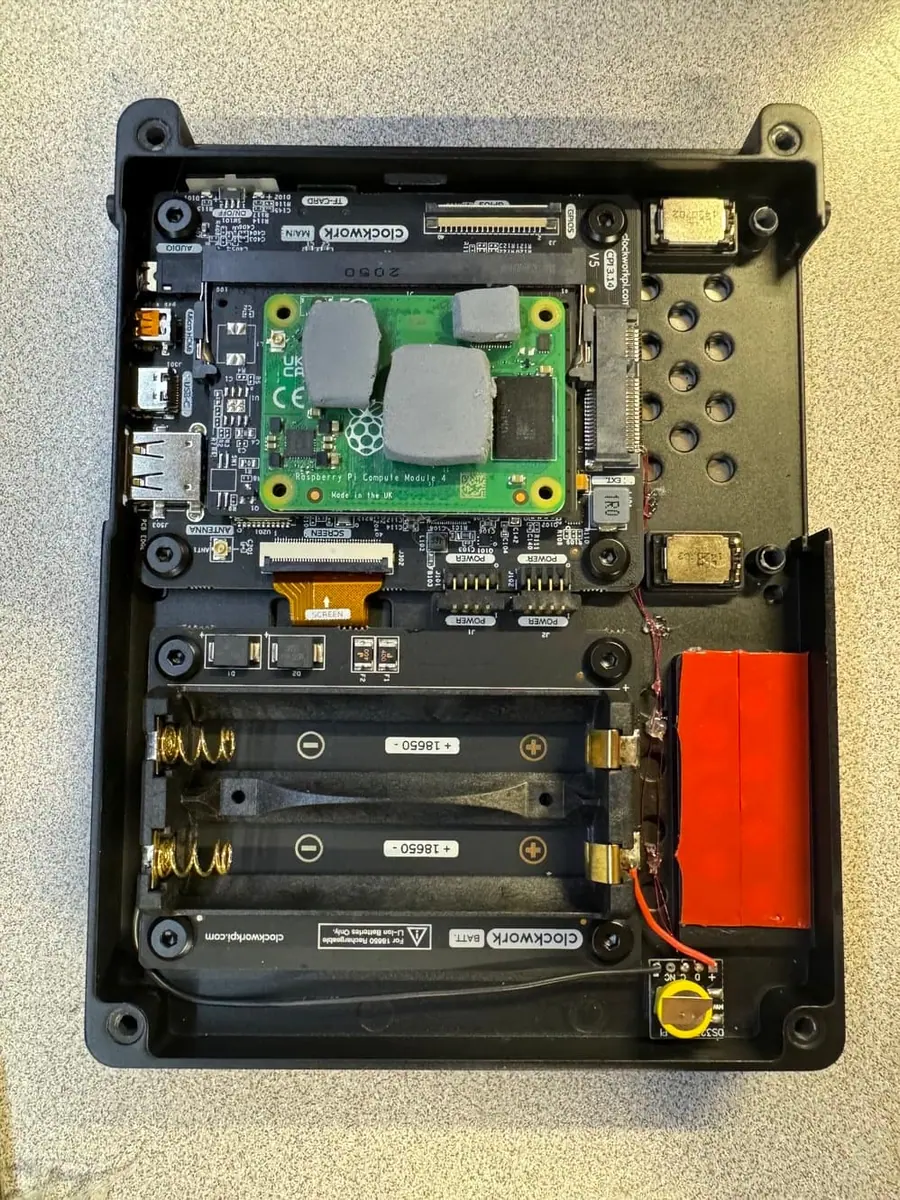

The RTC is soldered to the expansion connector's I²C pads and powered from one 18650 (microamp draw). One of the uHub's external ports was reassigned to an internal GPS module; the RTL-SDR hangs off the hub's internal header; the LoRa board uses what appears to be SPI from the hub's edge header. Written up as a show-and-tell with photos, so it is a reference for what fits rather than a kit.
Links
Open at Forum threadRelated mods

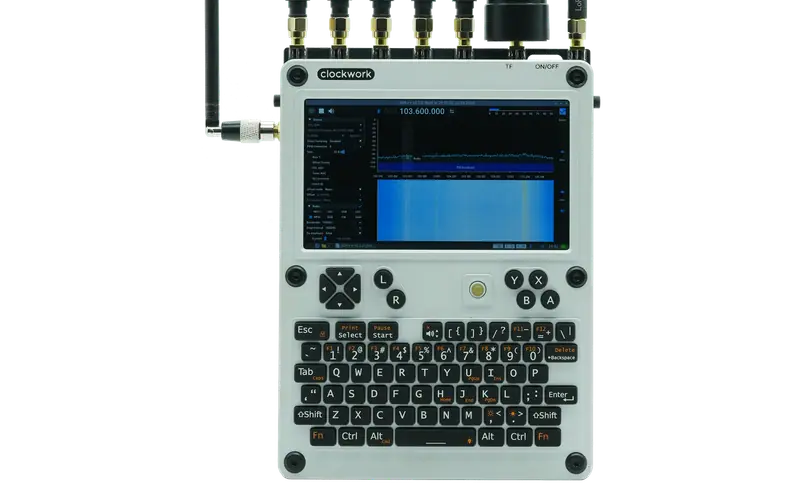

The all-in-one expansion card: RTL-SDR, SX1262 LoRa, GNSS, RTC and a USB hub with internal USB-C; the adapter board adds USB 3.0 and Gigabit Ethernet.
