Internal USB hub, external USB ports and RJ45 (MaggifiXXL)

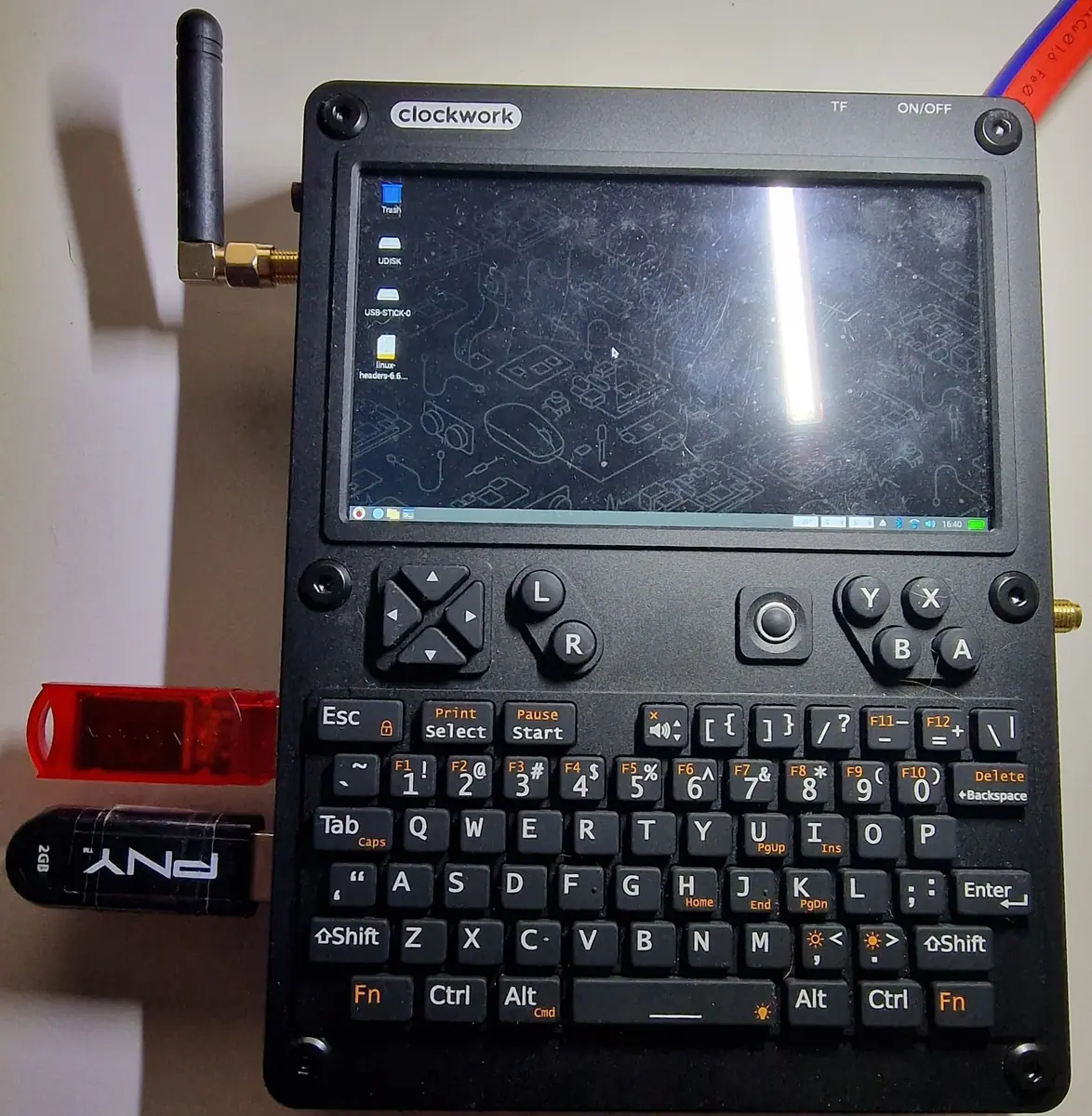

A four-port USB 2.0 hub inside the case, two external USB ports, an RJ45 network dongle and SMA connectors for two Wi-Fi radios.
What it takes
- Disassembly
- Soldering
- Drilling / permanent
- Purchase required
Difficulty 3 of 3 — advanced.
Details
USB is tapped from the unpopulated modem pads on the daughter board (the pins are in the GitHub schematics), feeding a DollarTec hub; from there an RJ45 dongle and two external USB ports are wired out, and an SMA jack is added for the onboard antenna with a second for a monitor-mode Wi-Fi dongle. The soldering is rough by the author's admission, but the layout is well documented.
