Solid clip-on cover with a deployable antenna (Kirou)
A PLA shell that clips onto the back using the stand as its anchor, plus an antenna mount with two clip positions — flat for the bag, deployed for range.
What it takes
- 3D print
- Disassembly
Difficulty 2 of 3 — moderate.
Details

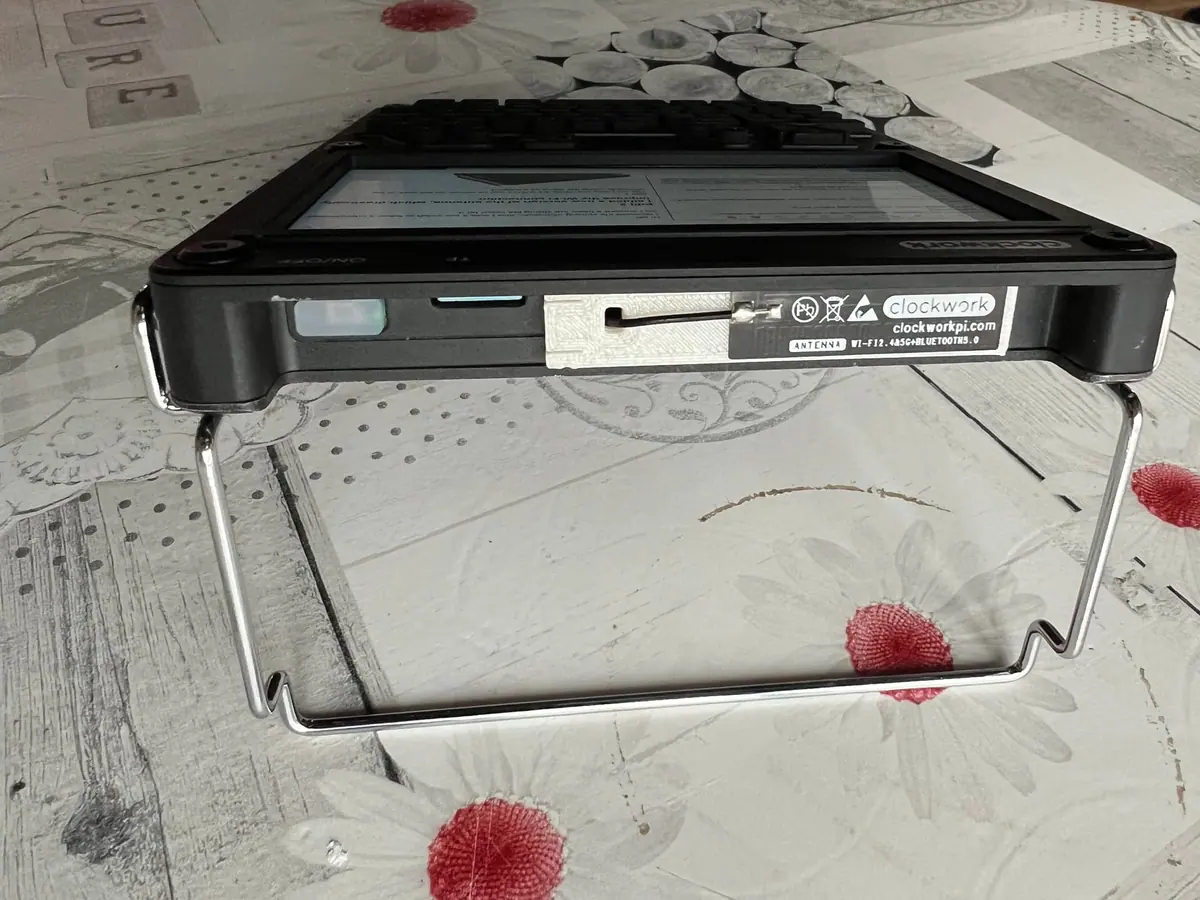

Kirou's cover is a solid printed shell that clips to the rear of the console, given a 1 mm gap and wide contact pads after Arkaium warned about paint rub. The antenna mod started as a piece of plastic between chassis and antenna (47 % → 62 % in the XFCE meter) and grew into a deployable mount, published separately on Thingiverse, that folds against the chassis for carrying and clips out when you need the signal; the thread's second edit calls the improvement drastic.
Both models are on Thingiverse under Kirouh; the files were added some time after the thread opened.
