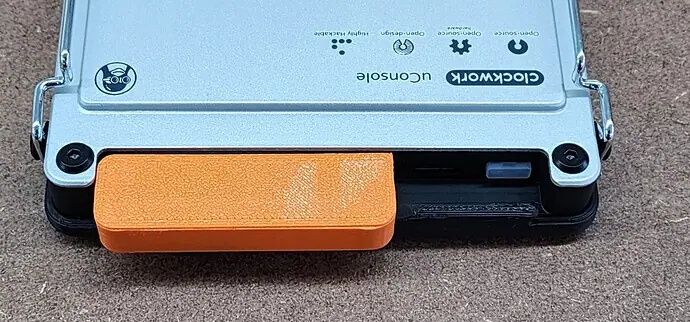

Slim backplate and antenna side compartment (oblivious)
A slimmer plastic backplate that helps Wi-Fi by getting the aluminium out of the way and hides extra radio hardware, with a matching antenna side compartment.
What it takes
- 3D print
- Disassembly
Difficulty 2 of 3 — moderate.
Details
oblivious's slim backplate (Printables, November 2024) is modular and plastic, which helps Wi-Fi and leaves room to tuck antennas or a radio module out of sight. The same designer's Wi-Fi antenna side compartment is one of the most-clicked links in the mod megathread and puts the antenna in a printed compartment on the side of the console. Neither has a dedicated forum thread; the model pages are the source.
Links
Open at Printables — uConsole slim backplateRelated mods

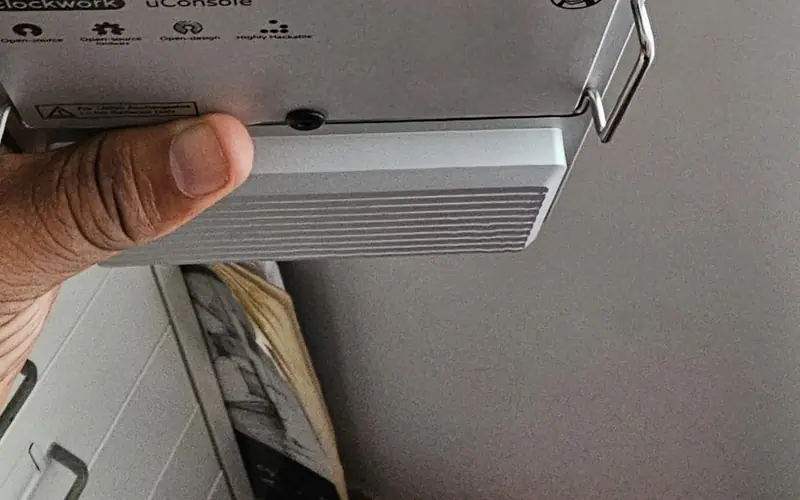

A tape-on printed hinge that holds the antenna flat for carrying and folds it up, clear of the metal body, when you need the signal.
