uConsole antenna holder (hsavior)
One of the first printed external antenna holders, designed in the antenna thread from other owners' measurements and refined once hsavior had his own console.
What it takes
- 3D print
- Disassembly
- Purchase required
Difficulty 2 of 3 — moderate.
Details
hsavior started the holder from dimensions posted in the thread, printed it in translucent resin, then remixed a printed cover to integrate the holder with a 1 mm gap around the antenna and published the updated version on Printables in November 2023 once his own uConsole arrived. n0ech reports v1.2 fits with a dab of CA glue.
It predates m3x's screw-on mounts and Snoozer94's no-drill SMA, which are the more common choices now, but it remains the reference for the cover-integrated approach.
Links
Open at Printables — uConsole Antenna HolderRelated mods

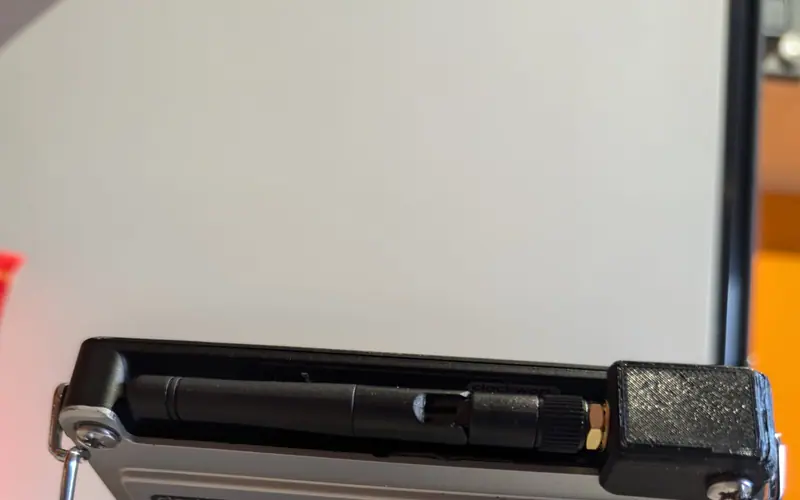

The most-printed external antenna mounts for the uConsole — a small bracket on the console's own M4 screw positions with an RP-SMA bulkhead for a short whip.
A printed bracket that bolts to the console's flat-head M4 screw positions and carries three SMA antennas; a companion profile fits the HackerGadgets AIO board.
A single-piece remix of paragonnov's three-antenna bracket that prints as one part, so there is nothing to glue.
A tape-on printed hinge that holds the antenna flat for carrying and folds it up, clear of the metal body, when you need the signal.

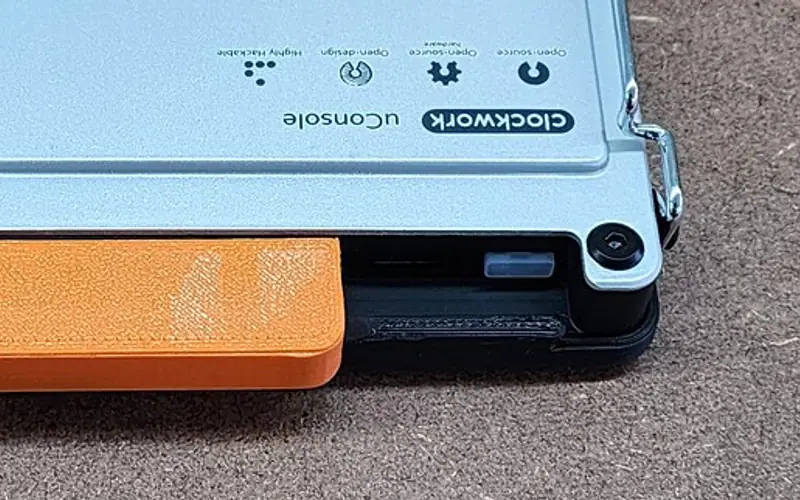

The bright orange antenna module that opens the mod megathread: a printed bracket and expansion-port cover carrying a whip antenna stripped of its housing.
