Grip case for holding the console (jamescodesthings)
A standalone printed grip that makes the uConsole comfortable to hold while sitting or lying down, keeping the keyboard usable; STEP included.
What it takes
- 3D print
Difficulty 1 of 3 — easy.
Details
jamescodesthings' grip gives the console hand-sized holds for long sessions on a sofa or in bed; a revision replaced the original finger holes. Print it upright on its base with tree supports and high infill; it was drawn for a 0.6 mm nozzle with two walls (use three walls on a 0.4 mm nozzle), and the designer's copy is PETG. A STEP is included so wall thickness and grip diameter can be tuned (CC BY-SA).
Links
Open at Thingiverse — uConsole Grip CaseRelated mods

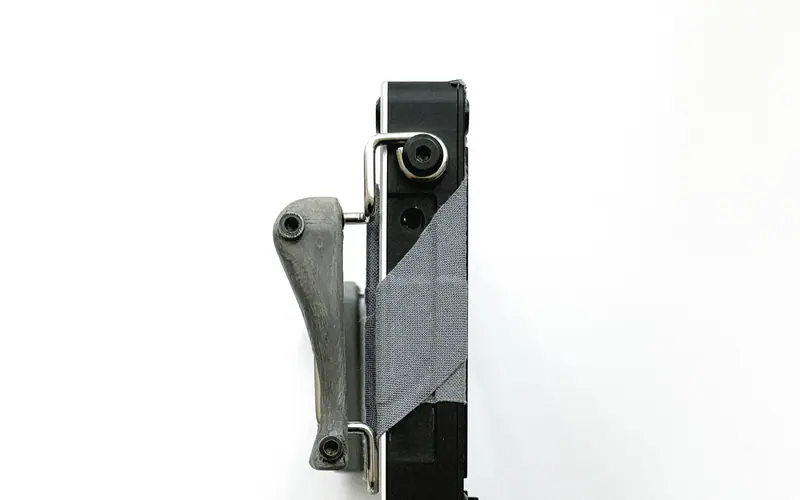

Printed trigger-style grips clamped onto the metal kickstand in two halves with M3 bolts, giving thumb-on-controls and index-finger typing holds.
