Five antennas on an aluminium L-profile (Hayri)

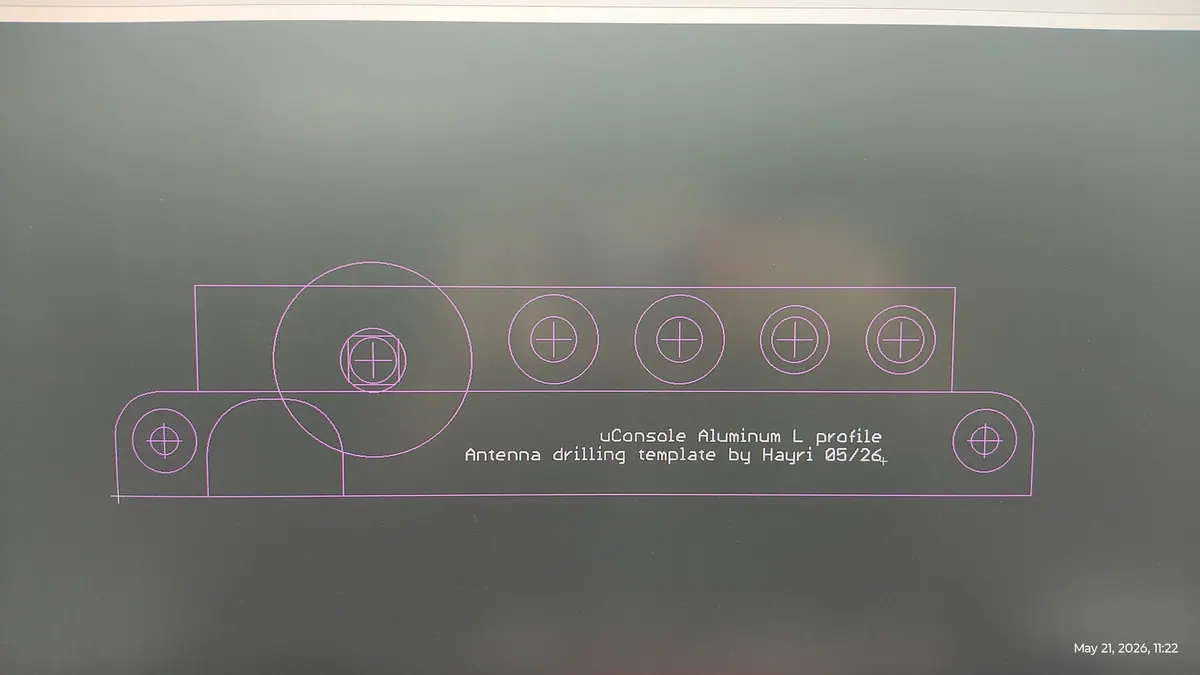

An external antenna rail made from aluminium L-profile that carries five SMA antennas, shown in photos and a short video rather than a write-up.
What it takes
- Purchase required
- Disassembly
Difficulty 2 of 3 — moderate.
Details
Hayri's alternative to printed brackets is a length of aluminium L-profile used as a rail for five external antennas; the thread is photos and a YouTube walk-through, with a completed-build photo added at the end of May 2026 once the SMA connectors arrived. The tripod ball head in the pictures is a stand — he warns a camera one is not rated for the console's weight and suggests a monitor arm instead. The same thread also shows his Apple Magic Trackpad in use as an input device.
Links
