Non-destructive SMA antenna through the cable slit (Snoozer94)
A screw-mount SMA bulkhead passed through the case's existing cable slit and nutted from inside — an external antenna with no drilling and no printing.
What it takes
- Disassembly
- Purchase required
Difficulty 2 of 3 — moderate.
Details

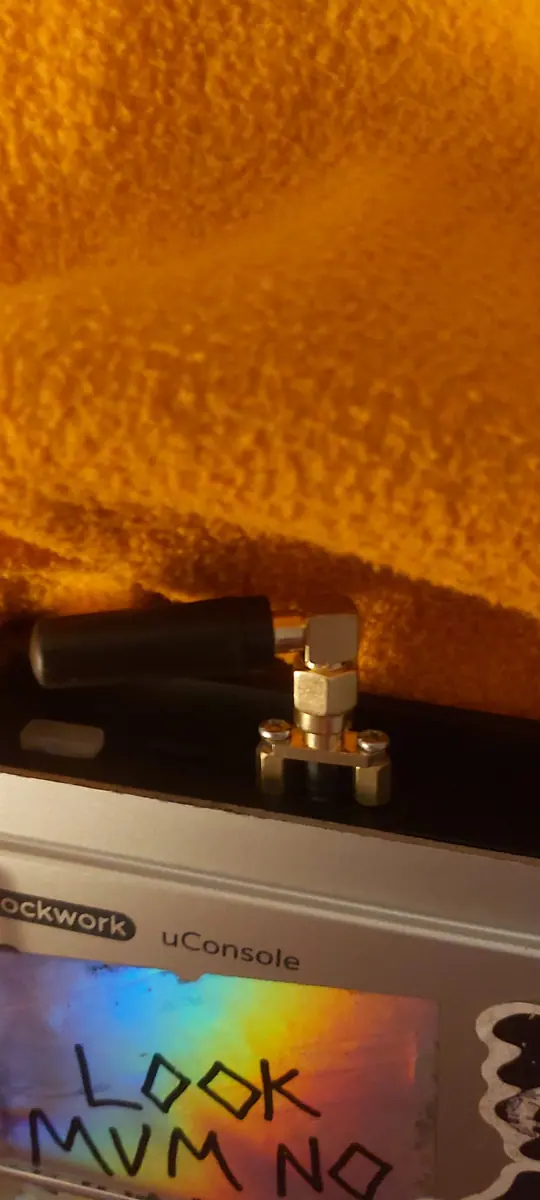

Snoozer94's method uses parts most Pi owners have lying about: an SMA bulkhead pigtail on the u.FL connector, pushed out through the slit already in the case and secured with a hex nut on the inside, plus an optional right-angle SMA adapter so the whip folds flat for carrying. The case is untouched and the change reverts in minutes; there are no before/after numbers in the thread.
Replies add variations — 9a4db's metal holder that gives the antenna a ground plane, ENG101's hot-glued antenna, Greg_E's epoxy putty — and Greg_E later confirmed an external antenna cured his directional Wi-Fi at 20 ft.
