u.FL to SMA bulkheads through the back panel, shielded (Funcron)
Drill two holes in the back panel for SMA bulkheads, run LTE-band whips that also help Wi-Fi, and line the inside with aluminium and kapton tape.
What it takes
- Disassembly
- Drilling / permanent
- Purchase required
Difficulty 3 of 3 — advanced.
Details

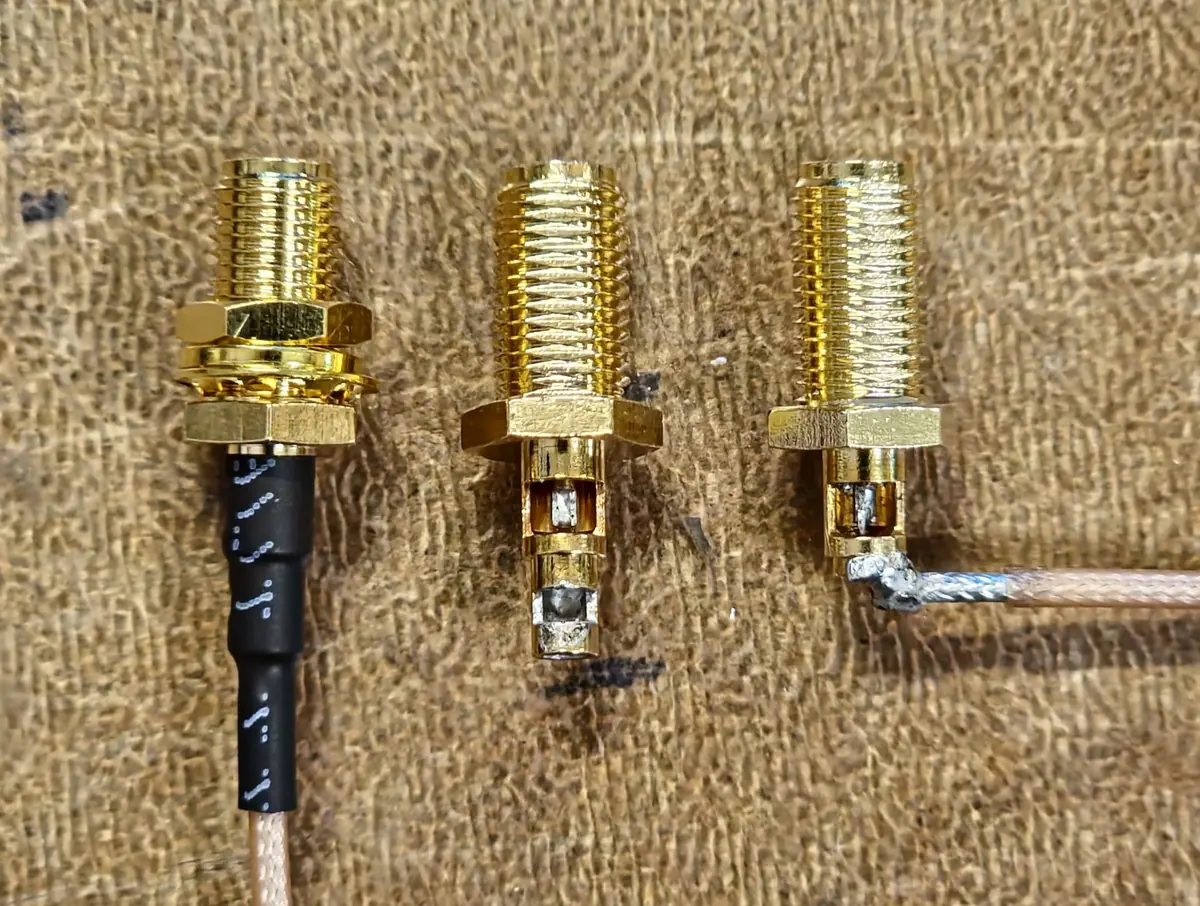

Funcron converted the u.FL leads to SMA bulkheads mounted through holes drilled in the back panel, placed to land in the gap between the batteries and the mainboard so nothing fouls; both antennas are LTE-band whips that unscrew for the bag. Aluminium tape with a kapton layer over it shields the RF runs and ties grounds. On his A-06 he reports 70 % Wi-Fi signal from a router 25 ft away through two walls and roughly double the cellular signal.
The same post adds 3 × 8 × 80 mm heat pipes glued to the case over the A-06 for a 5–8 °C drop. oikos's caveat: SMA connectors are not rated for many mating cycles, so do not unscrew them daily.
