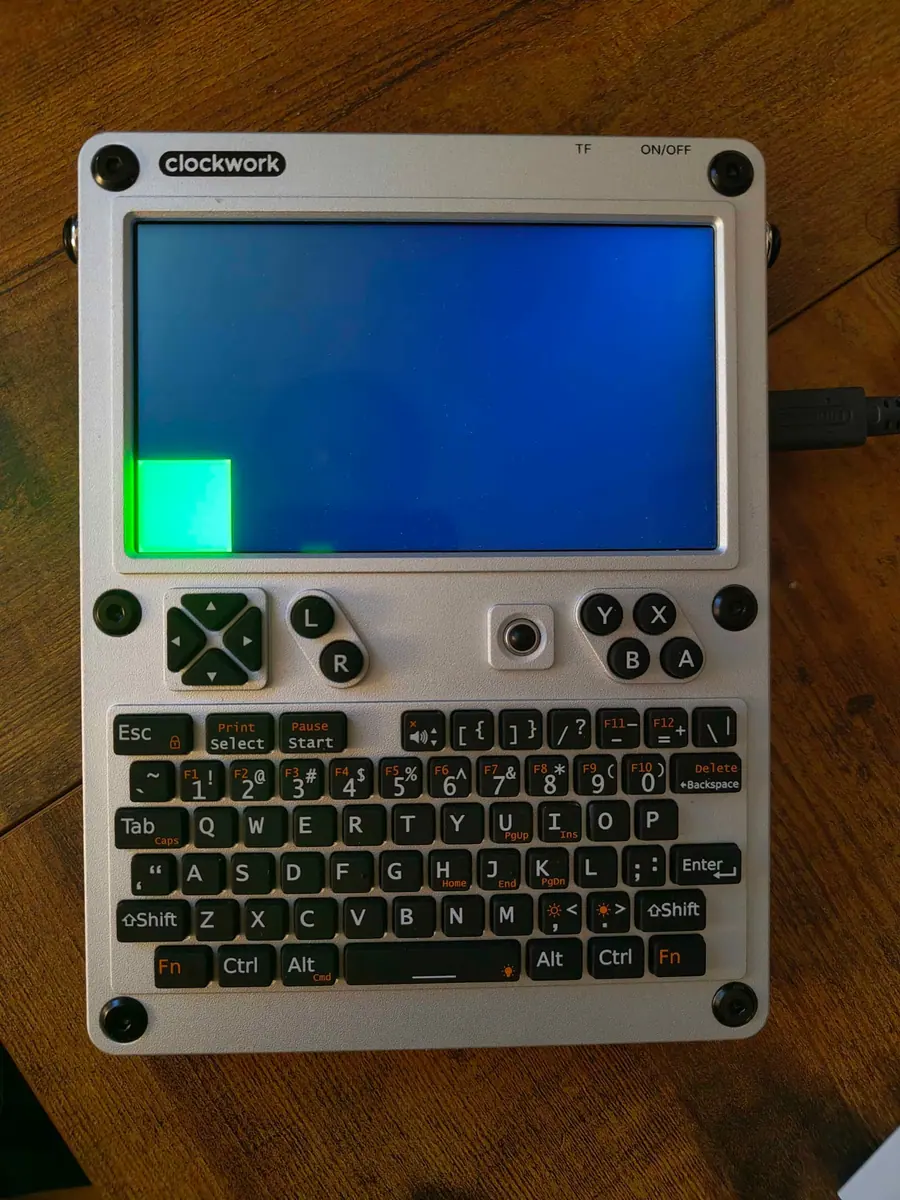

ClockworkPi R-01 RISC-V core (Allwinner D1)
A single-core 1 GHz RISC-V module with 1 GB and no GPU — a terminal machine with long battery life, now sold out, with a small but determined software scene.
What it takes
- Purchase required
- Disassembly
Difficulty 2 of 3 — moderate.
Details
forgeman's thread has followed the R-01 since 2022: an Allwinner D1 (single in-order core at 1 GHz, minimal graphics) that a moderator compared to a Pentium 2 or 3, with 60-second boots, slow shutdowns and a GUI that only makes sense with fbterm or twm. tiniuclx's 2025 first impressions are kinder — basic browsing works, JavaScript-heavy sites do not, 66 % battery after four hours and hardly any heat.
Software: ClockworkOS R01 v1.3b (Linux 5.4.61) from ClockworkPi, Ruben_Pastor's tuned Ubuntu 22.04 image with large fonts, working audio, i3 and rofi (login cpi/cpi, hosted on a personal server and mirrors), and ylyamin's RT-Thread bare-metal port with a working MIPI DSI display and USB HID input. The core is out of stock at ClockworkPi; the directory lists it as sold out.
Links
Open at Forum threadRelated mods

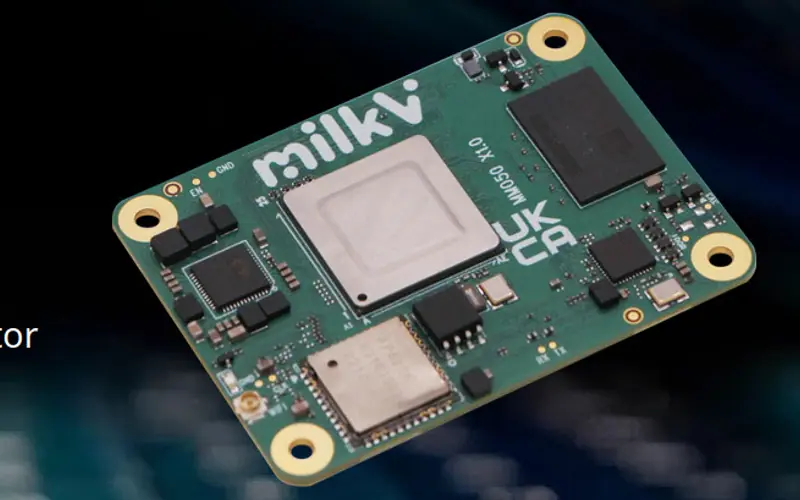

A $34 StarFive JH7110 RISC-V module in the CM4 footprint has been proposed twice for the uConsole; nobody has reported it booting the display.
A CM5 drops into the CM4 adapter for a faster CPU, up to 16 GB of RAM and USB 3.0 — get a Lite with WiFi, update its EEPROM, and mind the heat.
Every CM4 or CM5 sits on an adapter in the CM3 socket: the $19 open-source original, HackerGadgets' $23 board with NVMe and USB 3.0, or lulu's $20 CM5 kit.
trinity's reference table of every compute core that fits the uConsole — ISA, RAM, eMMC, WiFi, OS support, adapter needed or not — plus the adapter boards.
An RK3588S module with up to 32 GB RAM on HackerGadgets' Radxa adapter: display, keyboard, USB and charging work, no onboard WiFi, mainline kernel since 2026.
ClockworkPi's own RK3399 module — two Cortex-A72 plus four A53, Mali-T864, 4 GB — needs no adapter; $129, with a smaller but real software base.
