CM4/CM5 adapter boards: ClockworkPi, HackerGadgets, lulu
Every CM4 or CM5 sits on an adapter in the CM3 socket: the $19 open-source original, HackerGadgets' $23 board with NVMe and USB 3.0, or lulu's $20 CM5 kit.
What it takes
- Purchase required
- Disassembly
Difficulty 2 of 3 — moderate.
Details

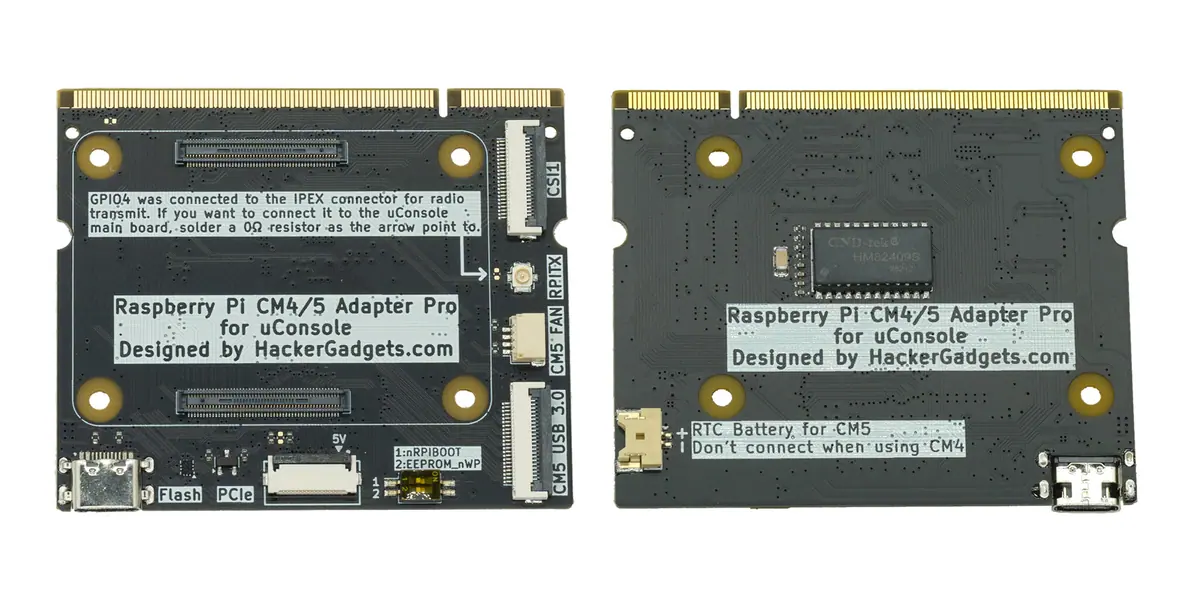

trinity's directory has the comparison: ClockworkPi's RPi adapter ($19, open source, no NVMe or USB 3, CM4/CM5); HackerGadgets' adapter ($23, closed, NVMe and USB 3, CM4/CM5, with a USB-C port and two DIP switches for RPIBOOT flashing, CM5 RTC battery contacts, PWM fan header and Ethernet routed to the expansion port); lululvlv's adapter ($20, CM5 only, part of the hack2you NVMe kit and the first NVMe option, with the drive on an expansion card); and HackerGadgets' Radxa variant ($23), the only board that makes a Radxa CM5 usable.
CM3, CM3+, CM4S, A-06 and R-01 need no adapter. HackerGadgets' board was on pre-order for September 2026 at the time of writing; the full kit has its own Expansion entry.
