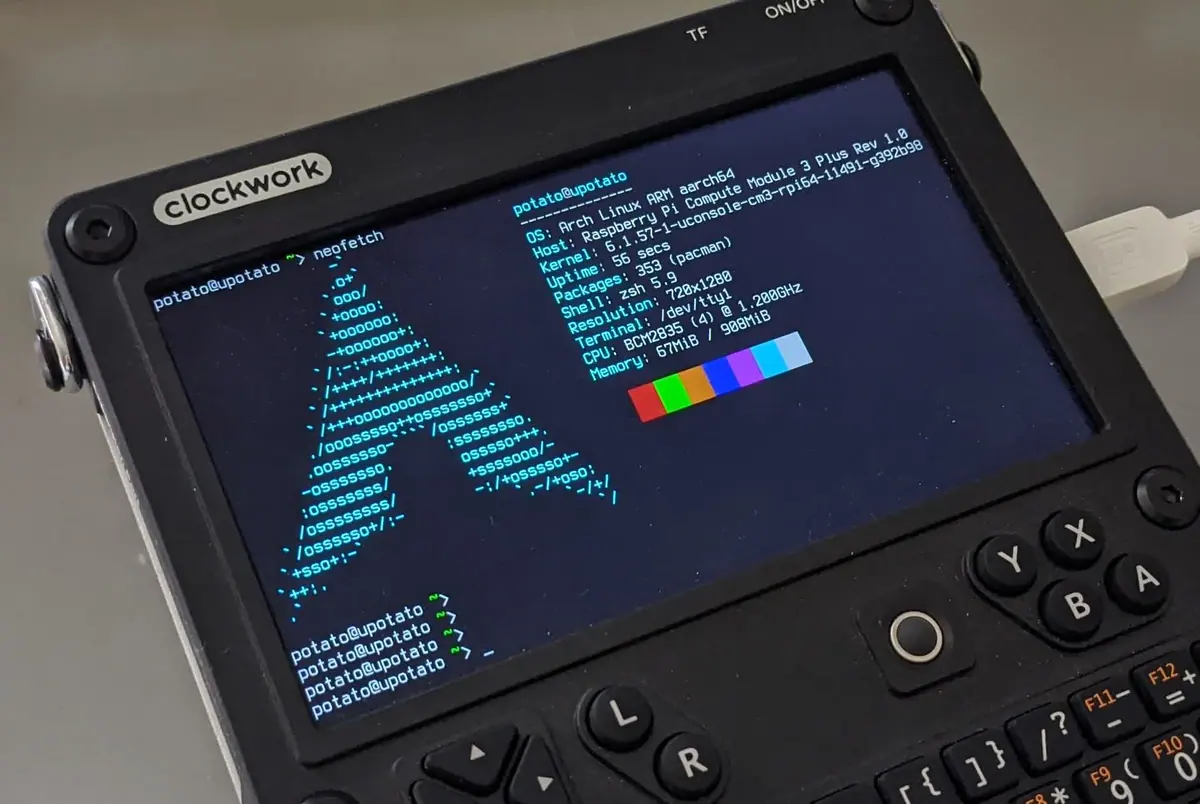

Raspberry Pi CM3, CM3+ and CM4S — no adapter needed
The mainboard's socket is a CM3 socket, so a CM3, CM3+ or CM4S drops straight in; PotatoMania's kernel work made them usable and Rex's images support them.
What it takes
- Purchase required
- Disassembly
Difficulty 2 of 3 — moderate.
Details
PotatoMania's October 2023 thread announced kernel patches on the Pi 6.1.y downstream tree for the CM3 and CM3+, with preliminary CM4 support, tested on Arch: HDMI and the DSI panel (with a workaround), speaker and jack routing, WiFi and Bluetooth, power button, USB, hardware video decode at about 10 % CPU. One hardware note from the thread: a small modification is needed so the 5 V bus shuts down properly. The uconsole-cm3 repository holds the PKGBUILDs and an image builder; the CM4S is electrically a CM3 in the CM4-era package.
Rex's Bookworm and Trixie images list CM3/CM3+/CM4S support too, and the OS directory has a Debian 12 image on 6.1.21 for CM3/CM4/CM4S. The core directory rates CM3/CM3+ software support 'good' and CM4S 'great', with the CM3 end-of-life on 16 October 2025.
