Official uConsole CAD files (STEP and OBJ)
ClockworkPi's shell models in STEP and OBJ under GPL3 — listed at $5 but free with coupon code UC — the base every printed cover and faceplate starts from.
What it takes
- 3D print
Difficulty 1 of 3 — easy.
Details

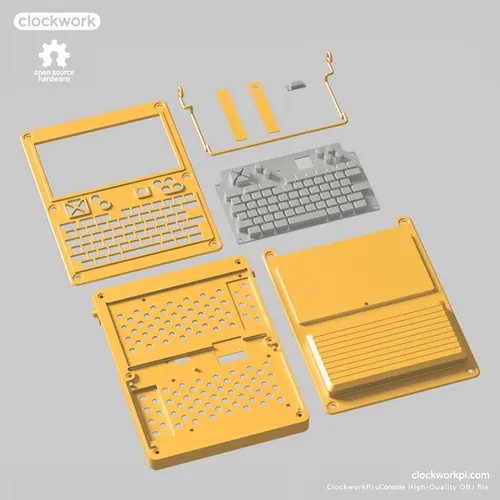

ClockworkPi released the uConsole 3D models in November 2023 on its shop as a $5 product that checks out free with the coupon code UC; the files are GPL3 and include STEP and OBJ. Aeger's thread notes the shop once sent DevTerm files by mistake — retry the order with the code if that happens. m3x re-uploaded the set to Printables, and 57Bravo's earlier FreeCAD models are still on GitHub for coarse templating (not for tight tolerances).
RogueNull's 'case framework' on MakerWorld is a design built on top of these and is listed separately.
Links
Open at ClockworkPi — uConsole 3D models in OBJ & STEP formatRelated mods
A modified front-cover STEP with a resized trackpad opening and a riser slot, machined by JLCPCB in hard-anodised 6061 — for owners of lulu's trackpad kit.

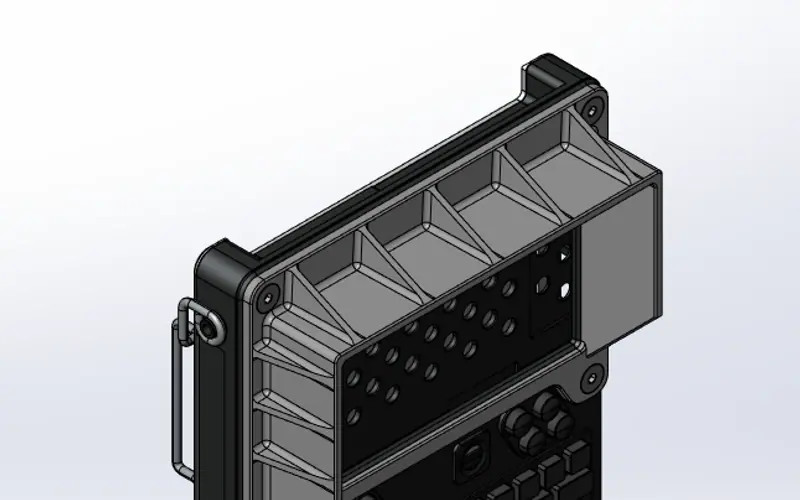

A printed shroud that mounts over the display as a privacy shield, fixed flush with longer recessed flat-head screws; shared as a STEP on Google Drive.
