Reversible power switch on the HackerGadgets battery board
beams' MSK12C02 slide switch uses the pads HackerGadgets reserved on the NVMe battery board to cut the cells — and the NVMe — without a hole in the case.
What it takes
- Disassembly
- Soldering
- Purchase required
Difficulty 3 of 3 — advanced.
Details

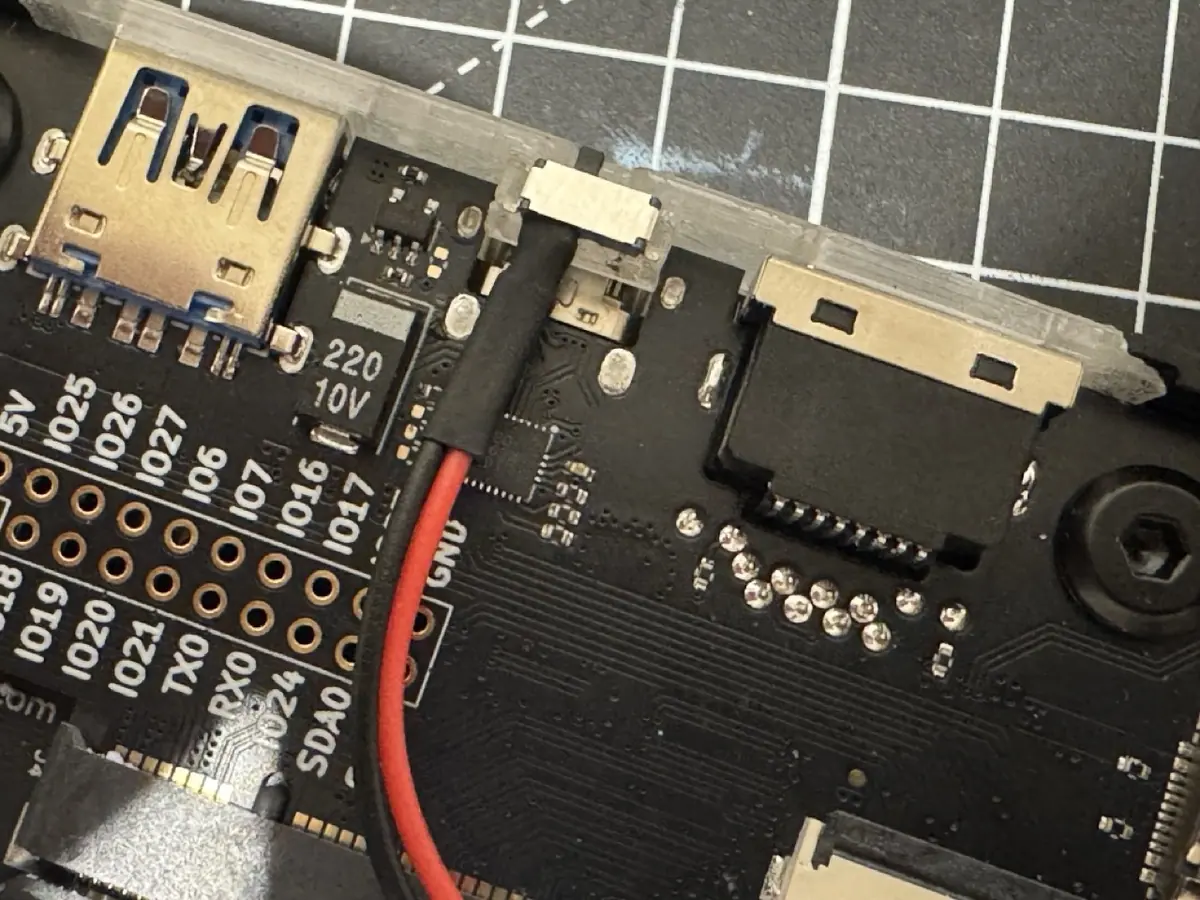

HackerGadgets' own instruction for a hard switch is to desolder R14 and put a push-lock switch on J6. beams' version fits an SMD MSK12C02 slide switch that sits at the side panel with the actuator protruding about 0.1 mm — reachable, but not in the way of expansion cards — and cuts the cells off at the board's battery connector; he calls it non-destructive and reversible because nothing on the console itself is cut or drilled. The full procedure is written up on jing.io. Two notes from the thread: the tiny resistor is hard to remove (one builder struggled with it), and the switch also cuts power to the NVMe drive, so shut down first.
See davefrommars' microswitch and null's paperclip switch for two other takes on the same J6 pads.
