uConsole Light Armor (JGM)
A full printed shell with reinforced corners, a hinged logo lid over the screen, a built-in stand, an antenna enclosure and a camera-strap adapter.
What it takes
- 3D print
- Purchase required
Difficulty 2 of 3 — moderate.
Details
JGM's Light Armor wraps the console in a PETG-CF shell: shock-protecting corners, a hinged screen lid carrying the ClockworkPi logo, an ergonomic stand that also shields the side ports from weather, a dedicated enclosure for two external antennas and a GPS puck, a power-button extension reachable through the antenna housing, and a camera-strap adapter. It fixes with six M4 × 8 screws, longer than stock.
Recommended settings: 0.2 mm layers, four walls, 15 % infill, supports on. Published on Printables and MakerWorld (CC BY-NC) in March 2025; the HackerGadgets antenna-board revision is a separate entry.
Links
Open at Printables — Clockwork PI uConsole light armorRelated mods
JGM's armour revised around the HackerGadgets AIO board: an enclosure on top holds the board and its antennas with the SMA connectors accessible.

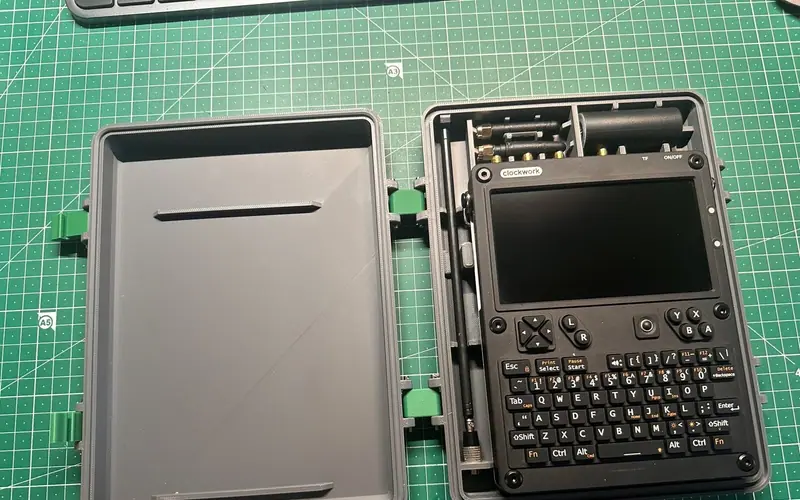

A hinged printed case that guards the screen and body in a bag and snap-holds the four antennas of a HackerGadgets AIO board; also sold printed by G7UFO.
A basic printed case with a hinged screen cover, meant as a starting framework others can extend; the hinge pin is a length of filament melted into rivets.
An 80s/90s-styled printed case with a back plate and two handles on mounting blocks, held on by the stock stand bolts, with a built-in WiFi antenna mount.

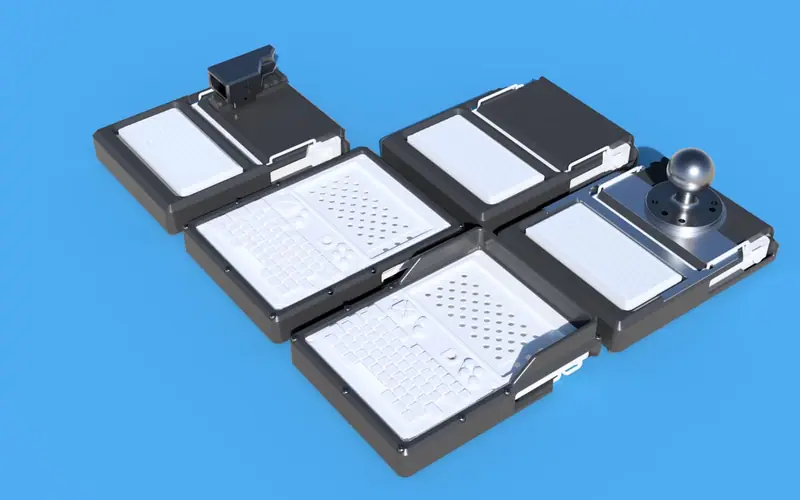

philosiraptor's rugged printed shell in several variants, including a sun shade, released with STL and Fusion 360 files days after the official CAD appeared.

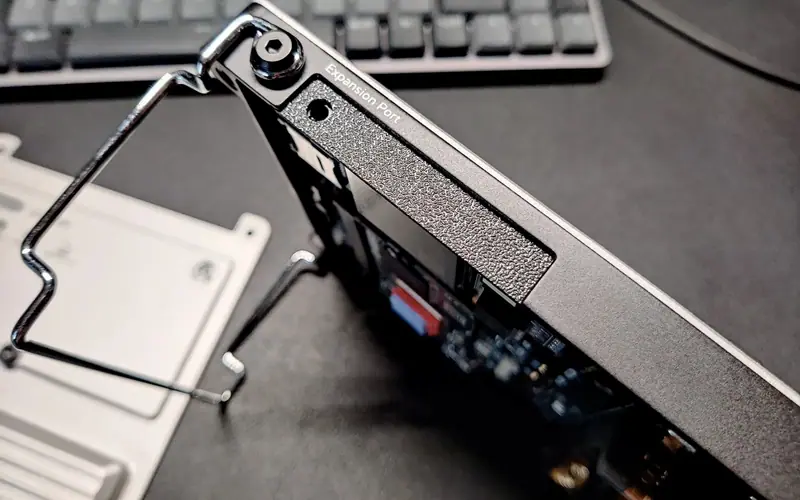

Replacement expansion-port side plates for LTE and non-LTE consoles, with STL, STEP and DXF, so you can relocate an FPC WiFi antenna behind the plastic.
