20 Ah backplate for two 146074 LiPo packs (untested)
UJW's deeper printed back fits two 10,000 mAh 146074 pouches and a Waveshare CM5 active cooler over the HackerGadgets boards — designed in CAD, not yet built.
What it takes
- 3D print
- Disassembly
- Soldering
- Purchase required
Difficulty 3 of 3 — advanced.
Details

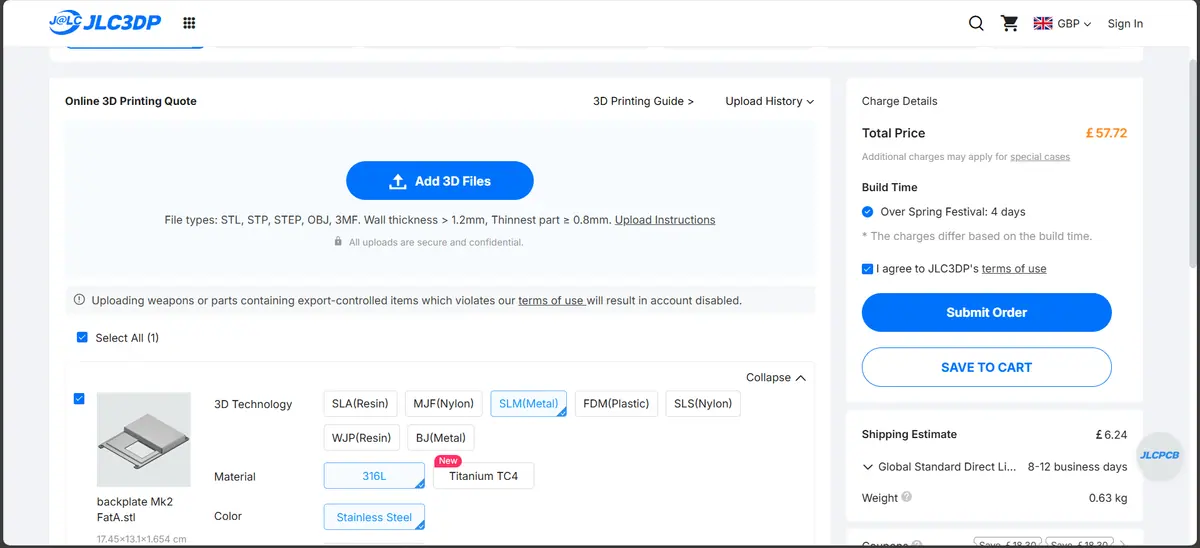

A remix of ClockworkPi's cover files that enlarges the battery bay for two 146074 lithium-polymer packs (10 Ah each) and clears a Waveshare CM5 active heatsink; it is designed around the HackerGadgets upgrade boards and will not fit a stock console. The author says up front it is untested; V2 files (February 2026) add depth for adapter-board clearance, and the kickstand cannot clip back because its screw goes away and the support bar will not fully close over the bigger bay. PCBWay's SLM service is suggested for a metal print.
All the LiPo caveats from the 10 Ah entry apply twice over: 3 A protection boards versus 5 A peaks, matched state of charge before paralleling, and the AXP228's single-cell charger. Wait for a build report before printing.
